R 5 679,85
inc. vat
In stock
SKU
6416889

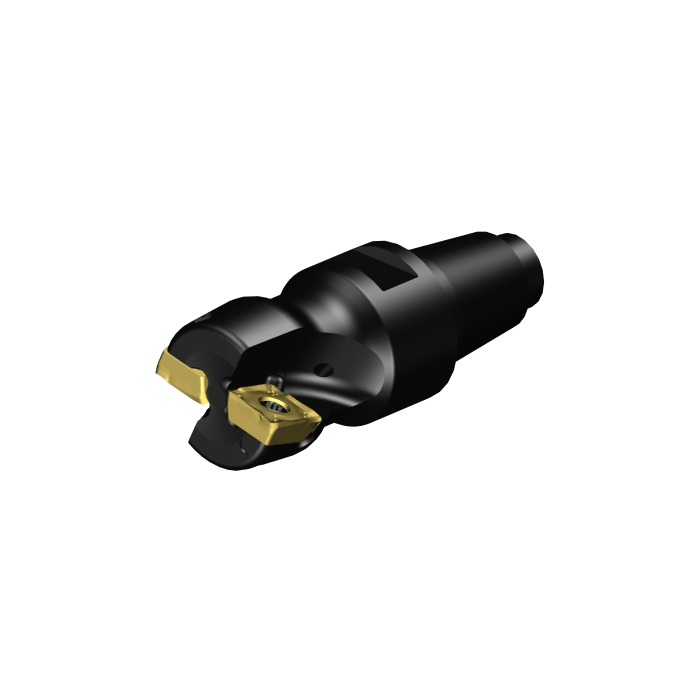

CoroMill® 490 head for square shoulder milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 490 head for square shoulder milling
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 19.3mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 30mm |
TQ - Torque | 1.2Nm |
RPMX - Rotational Speed Maximum | 485001/min |
WT - Weight Of Item | 62g |
OAL - Overall Length | 49.5mm |
OHX - Maximum Overhang | 30mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 0deg |
GAMO - Orthogonal Rake Angle | 19.9deg |
LAMS - Inclination Angle | 15deg |
IC - Inscribed Circle Diameter | 8.5mm |
Insert Thickness | 3.3mm |
APMX - Depth Of Cut Maximum | 5.5mm |
DC - Cutting Diameter | 20mm |
DCF - Cutting Diameter Face Contact | 18.4mm |
GAMF - Radial Rake Angle | 19.90000018deg |
GAMP - Axial Rake Angle | 14.99999987deg |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | 490-020EH20-08L |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0200_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:07:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MI08T3_1 |
Hand | R |
MIID - Master Insert Identification | 490R-08T308 |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 08 |
CICT - Cutting Item Count | 2 |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
