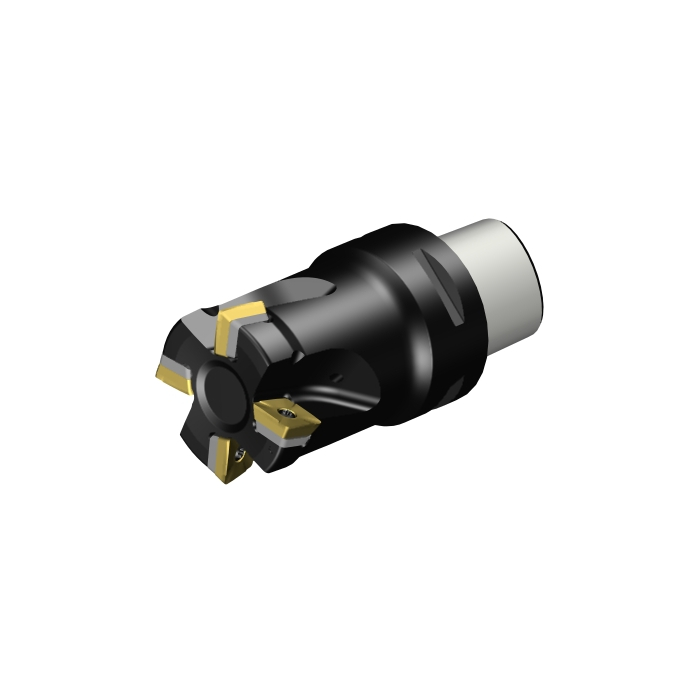

Sandvik Coromant 490-050C5-14M CoroMill™ 490 square shoulder milling cutter

Name: Sandvik Coromant 490-050C5-14M CoroMill™ 490 square shoulder milling cutter
SKU: 5829340
Price: 10172.90 ZAR
Availability: InStock

Be the first to review this product

R 10 172,90 inc. vat

In stock

SKU

5829340

CoroMill® 490 square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 490 square shoulder milling cutter

More Information

More Information
CP - Coolant Pressure	1000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	75mm
LB - Body Length	53mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	137001/min
WT - Weight Of Item	0.971kg
OAL - Overall Length	105mm
OHX - Maximum Overhang	75mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	15deg
LAMS - Inclination Angle	14deg
IC - Inscribed Circle Diameter	13.8mm
Insert Thickness	3.9mm
LU - Usable Length	50mm
APMX - Depth Of Cut Maximum	10mm
DC - Cutting Diameter	50mm
DCF - Cutting Diameter Face Contact	48.4mm
GAMF - Radial Rake Angle	14.99999987deg
GAMP - Axial Rake Angle	13.99999985deg
AZ - Maximum Plunge Depth	0mm
ORDCODE	490-050C5-14M
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0500_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 16:05:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MI1404_1
Hand	R
MIID - Master Insert Identification	490R-1404
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	14
CICT - Cutting Item Count	4
ZEFP - Peripheral Effective Cutting Edge Count	4
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
