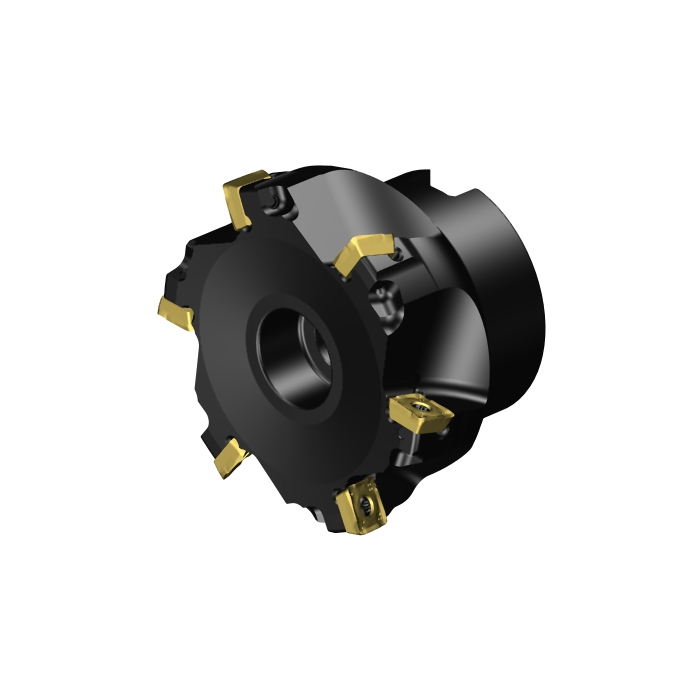

Sandvik Coromant 490-063Q22-08M CoroMill™ 490 square shoulder milling cutter
R 11 379,25
inc. vat
In stock
SKU
5761895
CoroMill® 490 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 490 square shoulder milling cutter
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 22mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 40mm |
| TQ - Torque | 1.2Nm |
| RPMX - Rotational Speed Maximum | 222001/min |
| WT - Weight Of Item | 530g |
| OAL - Overall Length | 40mm |
| OHX - Maximum Overhang | 40mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 0deg |
| GAMO - Orthogonal Rake Angle | 19.9deg |
| LAMS - Inclination Angle | 15deg |
| IC - Inscribed Circle Diameter | 8.5mm |
| Insert Thickness | 3.3mm |
| APMX - Depth Of Cut Maximum | 5.5mm |
| DC - Cutting Diameter | 63mm |
| DCF - Cutting Diameter Face Contact | 61.4mm |
| GAMF - Radial Rake Angle | 19.90000018deg |
| GAMP - Axial Rake Angle | 14.99999987deg |
| AZ - Maximum Plunge Depth | 0mm |
| ORDCODE | 490-063Q22-08M |
| ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_G2200_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-07-05 15:33:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | ISO6462 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MI08T3_1 |
| Hand | R |
| MIID - Master Insert Identification | 490R-08T308 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 08 |
| CICT - Cutting Item Count | 6 |
| ZEFP - Peripheral Effective Cutting Edge Count | 6 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | True |
