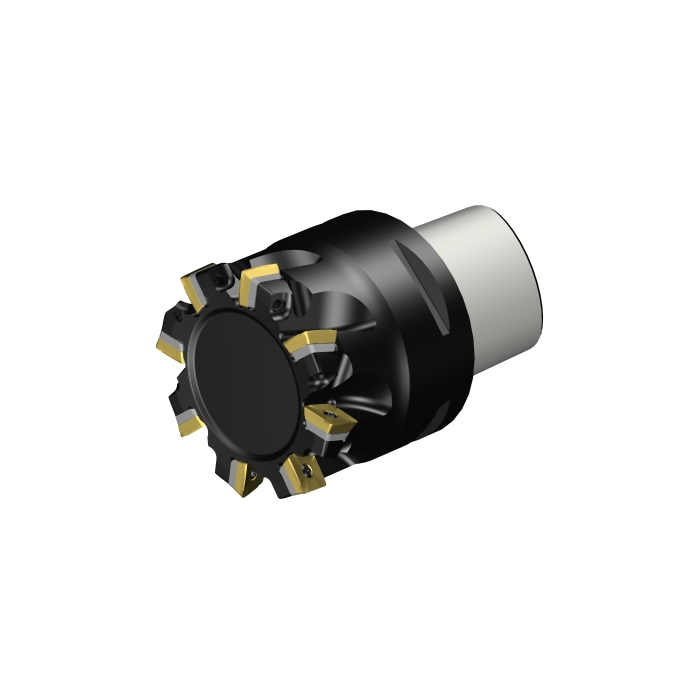

Sandvik Coromant 490-084C8-14H CoroMill™ 490 square shoulder milling cutter

R 16 675,00 inc. vat
In stock
SKU
5829360
CoroMill® 490 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 490 square shoulder milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DFC - Functional Diameter 55mm
DCON - Connection Diameter 80mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 70mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 98001/min
WT - Weight Of Item 2.955kg
OAL - Overall Length 118mm
OHX - Maximum Overhang 70mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 0deg
GAMO - Orthogonal Rake Angle 15deg
LAMS - Inclination Angle 16deg
IC - Inscribed Circle Diameter 13.8mm
Insert Thickness 3.9mm
APMX - Depth Of Cut Maximum 10mm
DC - Cutting Diameter 84mm
DCF - Cutting Diameter Face Contact 82.4mm
GAMF - Radial Rake Angle 14.99999987deg
GAMP - Axial Rake Angle 16.00000022deg
AZ - Maximum Plunge Depth 0mm
ORDCODE 490-084C8-14H
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0800_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-09-26 13:55:00.000
STDNO - Standard Number ISO26623-1
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MI1404_1
Hand R
MIID - Master Insert Identification 490R-1404
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 14
CICT - Cutting Item Count 8
ZEFP - Peripheral Effective Cutting Edge Count 8
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
