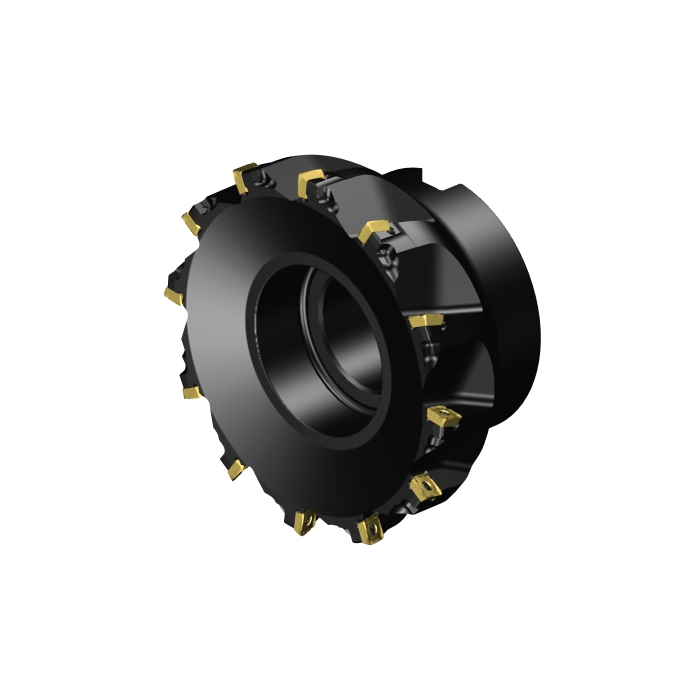

Sandvik Coromant 490-125Q40-08H CoroMill™ 490 square shoulder milling cutter

Name: Sandvik Coromant 490-125Q40-08H CoroMill™ 490 square shoulder milling cutter
SKU: 5761892
Price: 21870.70 ZAR
Availability: InStock

Be the first to review this product

R 21 870,70 inc. vat

In stock

SKU

5761892

CoroMill® 490 square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 490 square shoulder milling cutter

More Information

More Information
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63mm
TQ - Torque	1.2Nm
RPMX - Rotational Speed Maximum	152001/min
WT - Weight Of Item	550g
OAL - Overall Length	63mm
OHX - Maximum Overhang	63mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	19.9deg
LAMS - Inclination Angle	15deg
IC - Inscribed Circle Diameter	8.5mm
Insert Thickness	3.3mm
APMX - Depth Of Cut Maximum	5.5mm
DC - Cutting Diameter	125mm
DCF - Cutting Diameter Face Contact	123.4mm
GAMF - Radial Rake Angle	19.90000018deg
GAMP - Axial Rake Angle	14.99999987deg
AZ - Maximum Plunge Depth	0mm
ORDCODE	490-125Q40-08H
ADINTMS - Adaptive Interface Machine Direction	M_FDA1B1_G4000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-09-26 13:51:00.000
STDLET - Standard Letter	B
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MI08T3_1
Hand	R
MIID - Master Insert Identification	490R-08T308
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	08
CICT - Cutting Item Count	12
ZEFP - Peripheral Effective Cutting Edge Count	12
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
