Sandvik Coromant 490R-08T308M-PH 4220 CoroMill™ 490 insert for milling
Next
Sandvik Coromant 490R-08T312M-KM 1020 CoroMill™ 490 insert for milling
Previous
![Sandvik Coromant 490R-08T308M-PH 4220 CoroMill™ 490 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/65194543c/sandvik-coromant-490r-08t308m-ph-4220-coromilltm-490-insert-for-milling.jpg)
![Sandvik Coromant 490R-08T312M-KM 1020 CoroMill™ 490 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/651926e42/sandvik-coromant-490r-08t312m-km-1020-coromilltm-490-insert-for-milling.jpg)
R 326,60
inc. vat
In stock
SKU
5762177

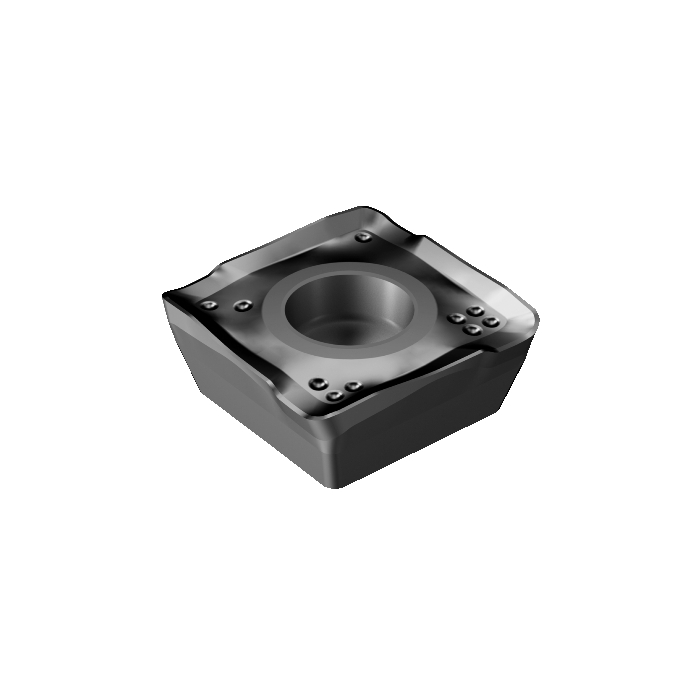

CoroMill® 490 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 490 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 2.2g |
AN - Clearance Angle Major | 15deg |
IC - Inscribed Circle Diameter | 8.5mm |
RE - Corner Radius | 1.2mm |
Insert Thickness | 3.3mm |
D1 - Fixing Hole Diameter | 2.8mm |
LE - Cutting Edge Effective Length | 5.6mm |
L - Cutting Edge Length | 8.5mm |
KRINS - Major Cutting Edge Angle | 90deg |
BS - Wiper Edge Length | 0.85mm |
APMX - Depth Of Cut Maximum | 5.5mm |
ORDCODE | 490R-08T312M-KM 3040 |
CHANGEDATE | 2022-09-23 17:45:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 08 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MI08T3_1 |
Grade | 3040 |
COATING | CVD TiCN+Al2O3 |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | KM |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | True |
