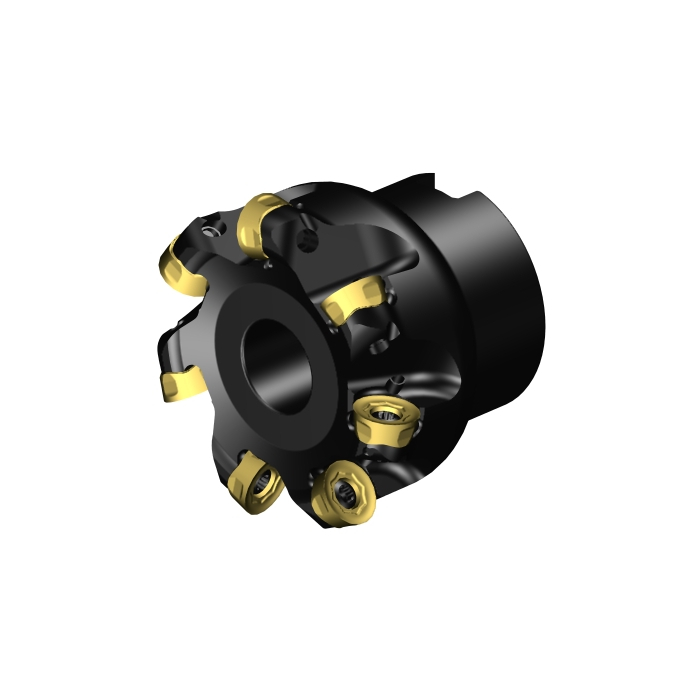

Sandvik Coromant 600-063Q22-12H CoroMill™ 600 face milling cutter

Name: Sandvik Coromant 600-063Q22-12H CoroMill™ 600 face milling cutter
SKU: 6252736
Price: 11994.50 ZAR
Availability: InStock

R 11 994,50 inc. vat

In stock

SKU

6252736

CoroMill® 600 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 600 face milling cutter

More Information
CP - Coolant Pressure	5000000Pa
DCON - Connection Diameter	22mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	50mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	167001/min
WT - Weight Of Item	0.564kg
OAL - Overall Length	50mm
OHX - Maximum Overhang	50mm
RMPX - Maximum Ramping Angle	2.5deg
GAMO - Orthogonal Rake Angle	5deg
LAMS - Inclination Angle	-5deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	12mm
Insert Thickness	5.2mm
APMX - Depth Of Cut Maximum	6mm
DC - Cutting Diameter	51mm
DCF - Cutting Diameter Face Contact	51mm
GAMF - Radial Rake Angle	4.9999998deg
GAMP - Axial Rake Angle	4.9999998deg
DCX - Maximum Cutting Diameter	63mm
AZ - Maximum Plunge Depth	2mm
ORDCODE	600-063Q22-12H
ADINTMS - Adaptive Interface Machine Direction	M_FDA1A1_G2200_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-07-05 15:37:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NM1252_1
Hand	R
MIID - Master Insert Identification	600-1252
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	12
CICT - Cutting Item Count	7
ZEFP - Peripheral Effective Cutting Edge Count	7
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
