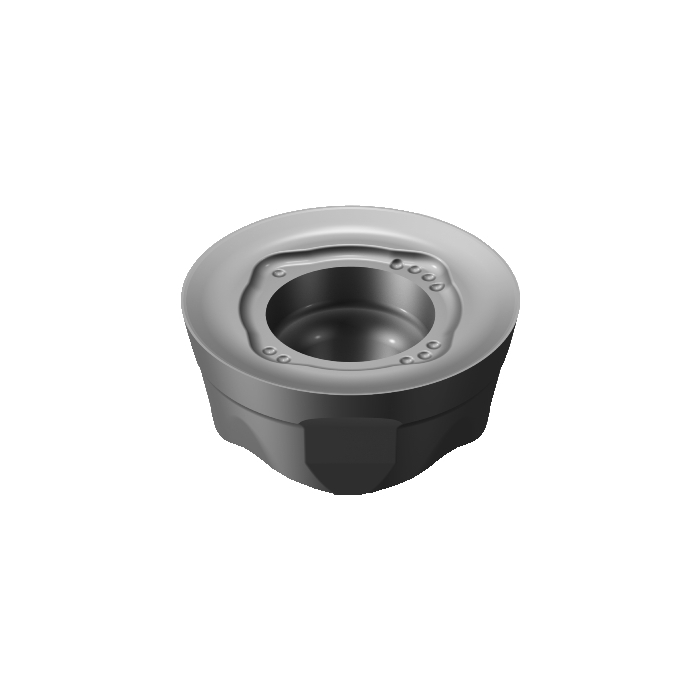

Sandvik Coromant 600-1045M-ML 1130 CoroMill™ 600 insert for milling
Next
Sandvik Coromant 419R-1405M-PM 1130 CoroMill™ 419 insert for milling
Previous
![Sandvik Coromant 600-1045M-ML 1130 CoroMill™ 600 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/68372830e/sandvik-coromant-600-1045m-ml-1130-coromilltm-600-insert-for-milling.jpg)
![Sandvik Coromant 419R-1405M-PM 1130 CoroMill™ 419 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/683701477/sandvik-coromant-419r-1405m-pm-1130-coromilltm-419-insert-for-milling.jpg)
R 232,30
inc. vat
In stock
SKU
7101003
CoroMill® 600 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 600 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 2g |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 10mm |
RE - Corner Radius | 5mm |
Insert Thickness | 4.5mm |
D1 - Fixing Hole Diameter | 4.5mm |
APMX - Depth Of Cut Maximum | 5mm |
ORDCODE | 600-1045E-ML 1130 |
CHANGEDATE | 2022-09-23 20:30:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 10 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NM1045_1 |
Grade | 1130 |
COATING | PVD AlTiCrN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | ML |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | False |
