Sandvik Coromant 600-1252E-ML S40T CoroMill™ 600 insert for milling
R 226,55
inc. vat
In stock
SKU
7082917

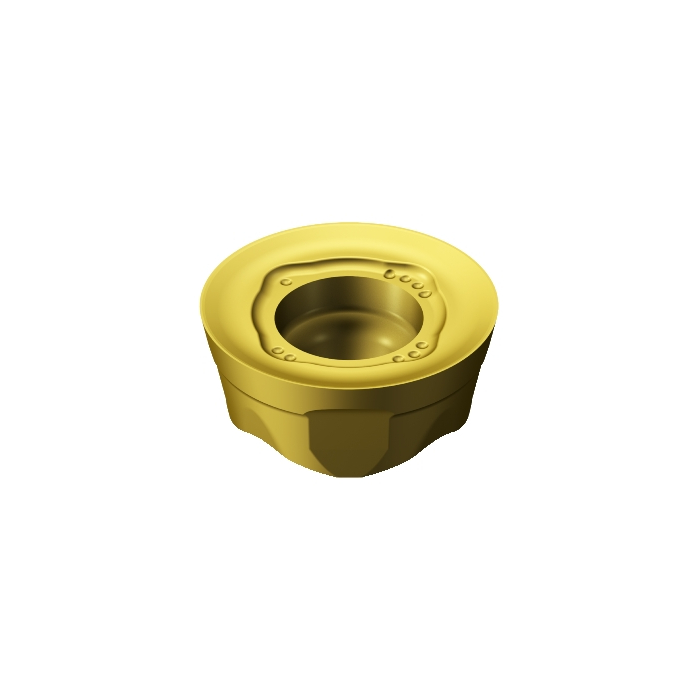

CoroMill® 600 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 600 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.005kg |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 12mm |
| RE - Corner Radius | 6mm |
| Insert Thickness | 5.2mm |
| D1 - Fixing Hole Diameter | 4.5mm |
| APMX - Depth Of Cut Maximum | 6mm |
| ORDCODE | 600-1252E-ML S40T |
| CHANGEDATE | 2022-09-23 20:29:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 12 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NM1252_1 |
| Grade | S40T |
| COATING | CVD TiCrN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | ML |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
