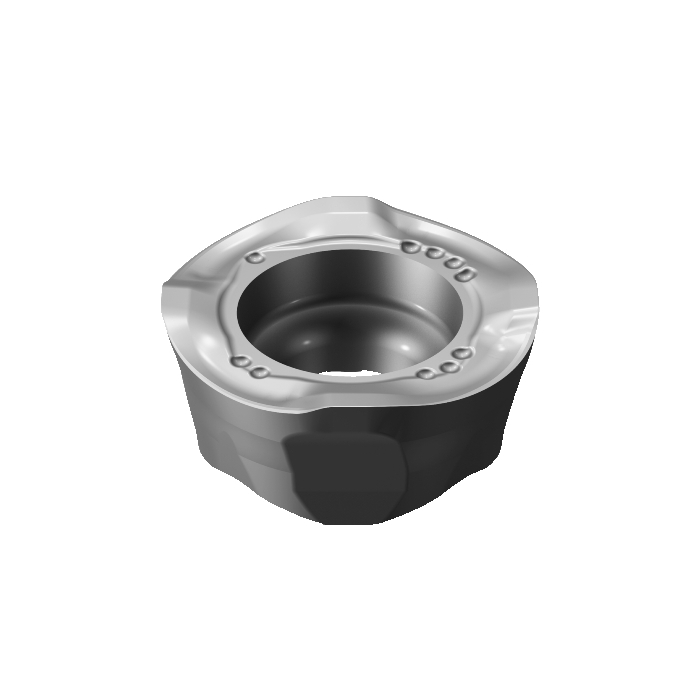

Sandvik Coromant 600R-1045M-MM 1130 CoroMill™ 600 insert for milling
R 181,70
inc. vat
In stock
SKU
7101007
CoroMill® 600 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 600 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1g |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 10mm |
| RE - Corner Radius | 5mm |
| Insert Thickness | 4.5mm |
| D1 - Fixing Hole Diameter | 4.5mm |
| BS - Wiper Edge Length | 0.8mm |
| APMX - Depth Of Cut Maximum | 3.6mm |
| BSR - Wiper Edge Radius | 100mm |
| ORDCODE | 600R-1045M-MM 1130 |
| CHANGEDATE | 2022-09-23 20:30:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 10 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NM1045_1 |
| Grade | 1130 |
| COATING | PVD AlTiCrN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | MM |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | True |
