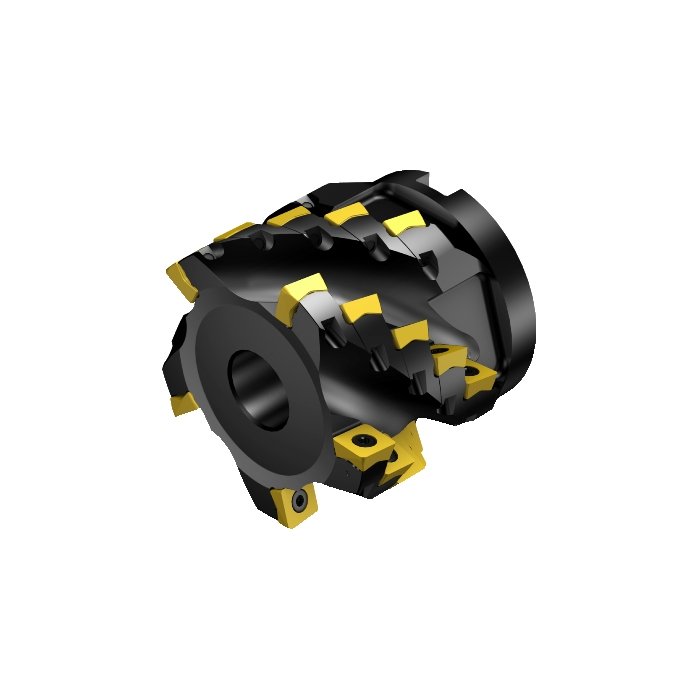

Sandvik Coromant 690-080Q32-1461M CoroMill™ 690 long edge square shoulder milling cutter

Name: Sandvik Coromant 690-080Q32-1461M CoroMill™ 690 long edge square shoulder milling cutter
SKU: 5764756
Price: 24391.50 ZAR
Availability: OutOfStock

Be the first to review this product

R 24 391,50 inc. vat

Out of stock

SKU

5764756

CoroMill® 690 long edge square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 690 long edge square shoulder milling cutter

More Information

More Information
DCON - Connection Diameter	32mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	98mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	50001/min
WT - Weight Of Item	2.417kg
OAL - Overall Length	98mm
OHX - Maximum Overhang	98mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	1deg
LAMS - Inclination Angle	7deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	14.5mm
Insert Thickness	6.35mm
APMX - Depth Of Cut Maximum	61mm
W1 - Insert Width	14.5mm
DC - Cutting Diameter	80mm
DCF - Cutting Diameter Face Contact	78.4mm
GAMF - Radial Rake Angle	0.99999972deg
GAMP - Axial Rake Angle	6.99999995deg
AZ - Maximum Plunge Depth	0mm
ORDCODE	690-080Q32-1461M
ADINTMS - Adaptive Interface Machine Direction	M_FDA1A1_G3200_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-07-05 15:34:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MK1406P_1
Hand	R
MIID - Master Insert Identification	690-140608M-E-SL
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	14P
CICT - Cutting Item Count	3
ZEFP - Peripheral Effective Cutting Edge Count	3
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
