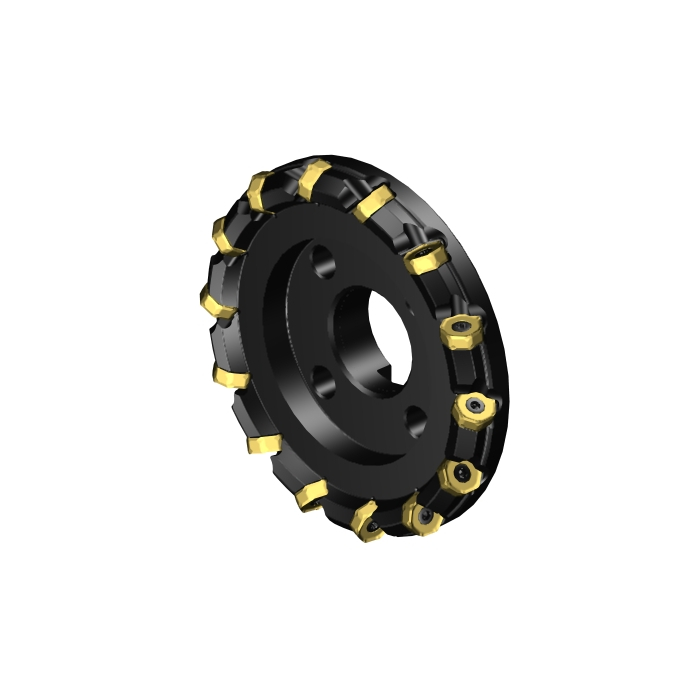

Sandvik Coromant 745-200Q60-21M CoroMill™ 745 face milling cutter

R 35 756,95 inc. vat
In stock
SKU
6702247
CoroMill® 745 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 745 face milling cutter
More Information
DCON - Connection Diameter 60mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 63mm
TQ - Torque 12Nm
RPMX - Rotational Speed Maximum 32921/min
WT - Weight Of Item 6.213kg
OAL - Overall Length 63mm
OHX - Maximum Overhang 63mm
DBC - Diameter Bolt Circle 101.6mm
KAPR - Tool Cutting Edge Angle 42deg
RMPX - Maximum Ramping Angle 0deg
GAMO - Orthogonal Rake Angle -10deg
LAMS - Inclination Angle 20deg
AN - Clearance Angle Major 13deg
IC - Inscribed Circle Diameter 21mm
Insert Thickness 9mm
L - Cutting Edge Length 10.113067mm
APMX - Depth Of Cut Maximum 5.2mm
DC - Cutting Diameter 200mm
DCF - Cutting Diameter Face Contact 200mm
GAMF - Radial Rake Angle -21.22957395deg
GAMP - Axial Rake Angle 6.41919062deg
DCX - Maximum Cutting Diameter 215.2mm
AZ - Maximum Plunge Depth 0mm
ORDCODE 745-200Q60-21M
ADINTMS - Adaptive Interface Machine Direction M_FDA1C4_G6000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-03-24 02:34:00.000
STDLET - Standard Letter C
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NN2109_1
Hand R
MIID - Master Insert Identification 745R-2109
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code 21
CICT - Cutting Item Count 14
ZEFP - Peripheral Effective Cutting Edge Count 14
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
