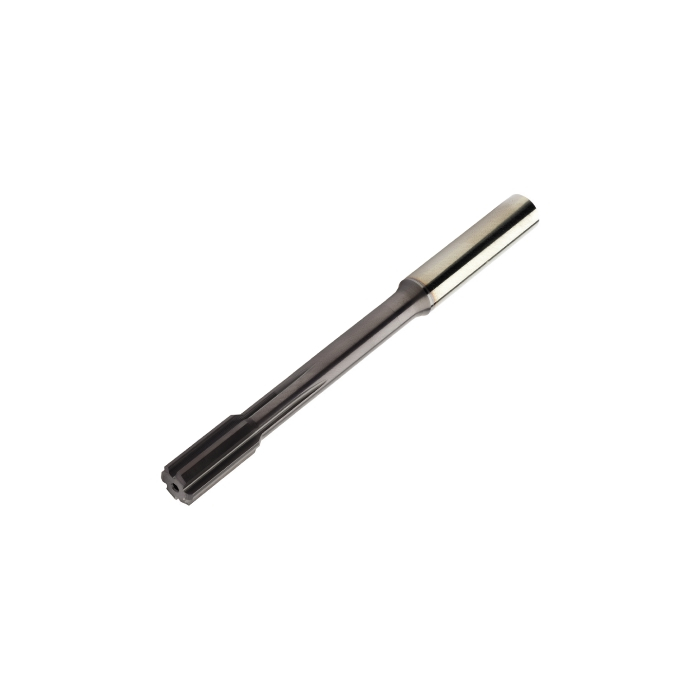

Sandvik Coromant 835.B-0400-A1-MF 1024 CoroReamer® 835 solid carbide reamer
R 3 061,30
inc. vat
In stock
SKU
6267004
CoroReamer™ 835 solid carbide reamer
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroReamer™ 835 solid carbide reamer
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 6mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 74.4mm |
| RPMX - Rotational Speed Maximum | 38201/min |
| WT - Weight Of Item | 0.031kg |
| OAL - Overall Length | 75mm |
| OHX - Maximum Overhang | 38.4mm |
| LU - Usable Length | 39mm |
| L - Cutting Edge Length | 12mm |
| APMX - Depth Of Cut Maximum | 0.3mm |
| TG - Taper Gradient | 0 |
| DC - Cutting Diameter | 4mm |
| DN - Neck Diameter | 3.1mm |
| FHA - Flute Helix Angle | 0deg |
| TCHAL - Achievable Hole Tolerance Lower | 0mm |
| TCHAU - Achievable Hole Tolerance Upper | 0.012mm |
| LCF - Chip Flute Length | 15.6mm |
| PHD - Premachined Hole Diameter | 3.8mm |
| PLGL - Plug Length | 0.6mm |
| ORDCODE | 835.B-0400-A1-MF 1024 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-12-21 13:14:00.000 |
| STDLET - Standard Letter | HA |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1024 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | COROMANT |
| TCHA - Achievable Hole Tolerance | H7 |
| ZEFP - Peripheral Effective Cutting Edge Count | 4 |
| NOF - Flute Count | 4 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
