Sandvik Coromant 835.B-0900-A1-MF 1024 CoroReamer® 835 solid carbide reamer
Next
Sandvik Coromant 835.B-0801-A1-MF 1024 CoroReamer® 835 solid carbide reamer
Previous
![Sandvik Coromant 835.B-0900-A1-MF 1024 CoroReamer® 835 solid carbide reamer](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/801615219/sandvik-coromant-835-b-0900-a1-mf-1024-cororeamerr-835-solid-carbide-reamer.jpg)
![Sandvik Coromant 835.B-0801-A1-MF 1024 CoroReamer® 835 solid carbide reamer](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/80159e56b/sandvik-coromant-835-b-0801-a1-mf-1024-cororeamerr-835-solid-carbide-reamer.jpg)
R 3 479,90
inc. vat
Out of stock
SKU
6267034

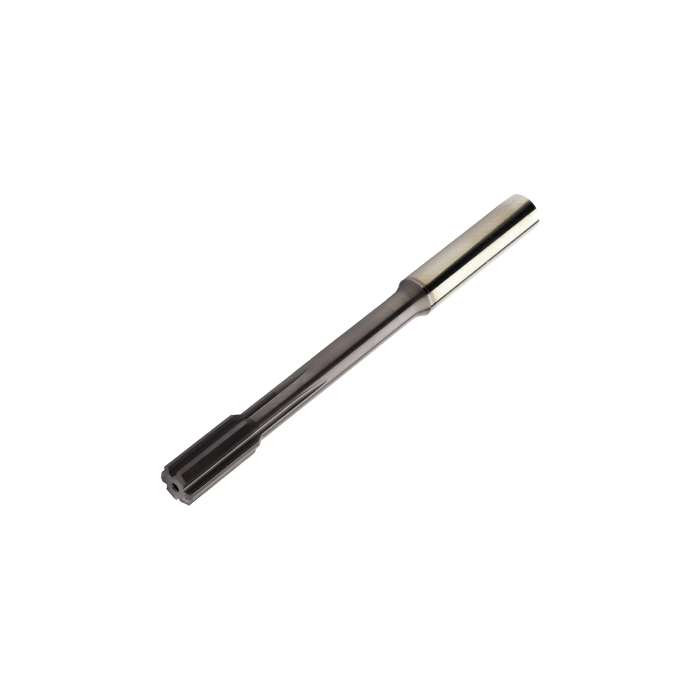

CoroReamer™ 835 solid carbide reamer
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroReamer™ 835 solid carbide reamer
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 10mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 98.72mm |
RPMX - Rotational Speed Maximum | 17981/min |
WT - Weight Of Item | 84.4g |
OAL - Overall Length | 100mm |
OHX - Maximum Overhang | 58.72mm |
LU - Usable Length | 60mm |
L - Cutting Edge Length | 20mm |
APMX - Depth Of Cut Maximum | 0.3mm |
TG - Taper Gradient | 0 |
DC - Cutting Diameter | 8.5mm |
DN - Neck Diameter | 6.6mm |
FHA - Flute Helix Angle | 0deg |
TCHAL - Achievable Hole Tolerance Lower | 0mm |
TCHAU - Achievable Hole Tolerance Upper | 0.015mm |
LCF - Chip Flute Length | 26mm |
PHD - Premachined Hole Diameter | 8.3mm |
PLGL - Plug Length | 1.28mm |
ORDCODE | 835.B-0850-A1-MF 1024 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 13:15:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1024 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
TCHA - Achievable Hole Tolerance | H7 |
ZEFP - Peripheral Effective Cutting Edge Count | 6 |
NOF - Flute Count | 6 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
