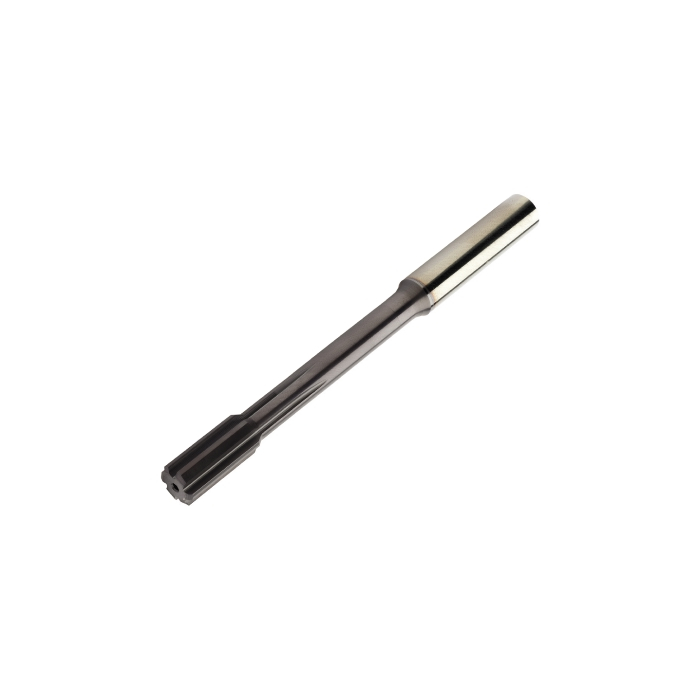

Sandvik Coromant 835.B-1600-A1-PF 1024 CoroReamer® 835 solid carbide reamer

R 6 089,25 inc. vat
In stock
SKU
6266935
CoroReamer™ 835 solid carbide reamer
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroReamer™ 835 solid carbide reamer
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 16mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 147.6mm
RPMX - Rotational Speed Maximum 44171/min
WT - Weight Of Item 0.326kg
OAL - Overall Length 150mm
OHX - Maximum Overhang 99.6mm
LU - Usable Length 102mm
L - Cutting Edge Length 25mm
APMX - Depth Of Cut Maximum 0.3mm
TG - Taper Gradient 0
DC - Cutting Diameter 16mm
DN - Neck Diameter 12.4mm
FHA - Flute Helix Angle 0deg
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.018mm
LCF - Chip Flute Length 32.5mm
PHD - Premachined Hole Diameter 15.8mm
PLGL - Plug Length 2.4mm
ORDCODE 835.B-1600-A1-PF 1024
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1600_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 13:02:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1024
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H7
ZEFP - Peripheral Effective Cutting Edge Count 6
NOF - Flute Count 6
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
