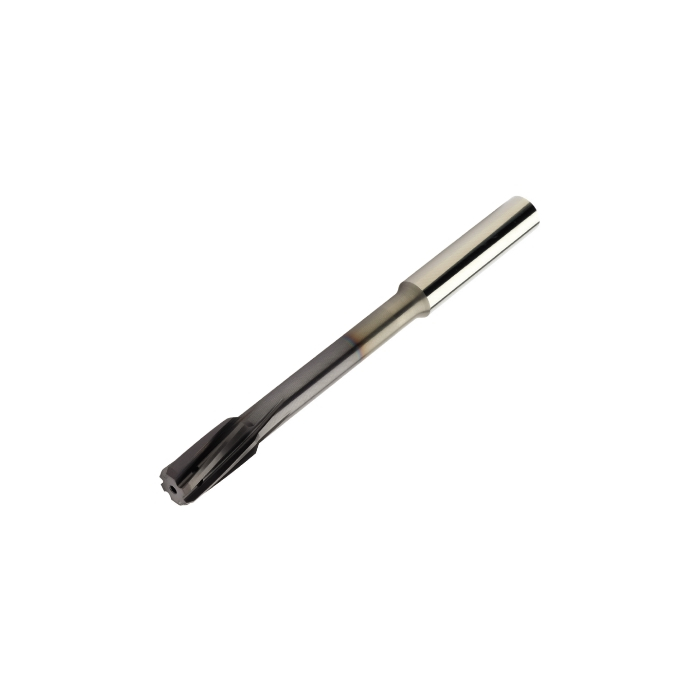

Sandvik Coromant 835.T-0501-A1-PF 1024 CoroReamer® 835 solid carbide reamer

R 3 479,90 inc. vat
In stock
SKU
6266952
CoroReamer™ 835 solid carbide reamer
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroReamer™ 835 solid carbide reamer
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 74.25mm
RPMX - Rotational Speed Maximum 141051/min
WT - Weight Of Item 0.034kg
OAL - Overall Length 75mm
OHX - Maximum Overhang 38.25mm
LU - Usable Length 39mm
L - Cutting Edge Length 12mm
APMX - Depth Of Cut Maximum 0.3mm
TG - Taper Gradient 0
DC - Cutting Diameter 5.01mm
DN - Neck Diameter 3.9mm
FHA - Flute Helix Angle 10deg
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.012mm
LCF - Chip Flute Length 15.6mm
PHD - Premachined Hole Diameter 4.8mm
PLGL - Plug Length 0.75mm
ORDCODE 835.T-0501-A1-PF 1024
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 13:09:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1024
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H7
ZEFP - Peripheral Effective Cutting Edge Count 4
NOF - Flute Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
