Sandvik Coromant 435.B-0400-A1-XF H10F CoroReamer® 435 solid carbide reamer
Next
Sandvik Coromant 835.T-1500-A1-MF 1024 CoroReamer® 835 solid carbide reamer
Previous
R 6 408,95
inc. vat
In stock
SKU
6267118

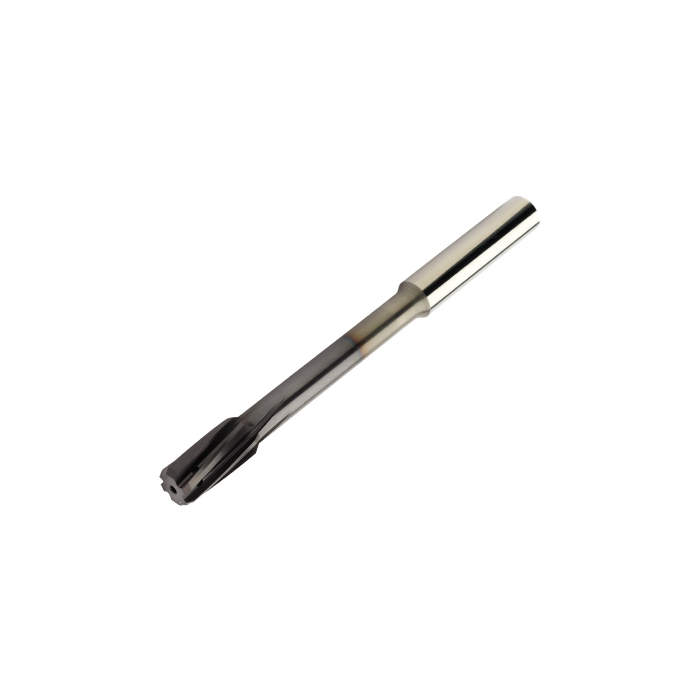

CoroReamer™ 835 solid carbide reamer
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroReamer™ 835 solid carbide reamer
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 16mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 147.6mm |
RPMX - Rotational Speed Maximum | 9551/min |
WT - Weight Of Item | 374.2g |
OAL - Overall Length | 150mm |
OHX - Maximum Overhang | 99.6mm |
LU - Usable Length | 102mm |
L - Cutting Edge Length | 25mm |
APMX - Depth Of Cut Maximum | 0.3mm |
TG - Taper Gradient | 0 |
DC - Cutting Diameter | 16mm |
DN - Neck Diameter | 12.4mm |
FHA - Flute Helix Angle | 10deg |
TCHAL - Achievable Hole Tolerance Lower | 0mm |
TCHAU - Achievable Hole Tolerance Upper | 0.018mm |
LCF - Chip Flute Length | 32.5mm |
PHD - Premachined Hole Diameter | 15.8mm |
PLGL - Plug Length | 2.4mm |
ORDCODE | 835.T-1600-A1-MF 1024 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1600_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 13:15:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1024 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
TCHA - Achievable Hole Tolerance | H7 |
ZEFP - Peripheral Effective Cutting Edge Count | 6 |
NOF - Flute Count | 6 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
