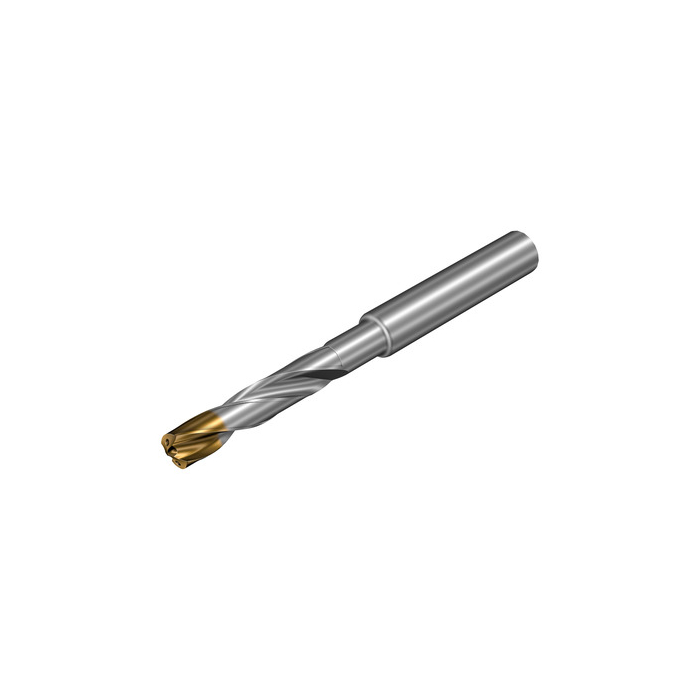

Sandvik Coromant 860.1-0357-028A1-GM X1BM corodrill® 860 solid carbide drill
Next
Sandvik Coromant 860.1-0340-027A1-GM X1BM corodrill® 860 solid carbide drill
Previous
R 3 685,75
inc. vat
In stock
SKU
7823897
corodrill® 860 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
corodrill® 860 solid carbide drill
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 78.5mm |
RPMX - Rotational Speed Maximum | 294661/min |
WT - Weight Of Item | 0.024kg |
OAL - Overall Length | 79mm |
OHX - Maximum Overhang | 42.5mm |
GAMO - Orthogonal Rake Angle | 21.45deg |
LU - Usable Length | 28.6mm |
DC - Cutting Diameter | 3.5mm |
FHA - Flute Helix Angle | 31.4deg |
ULDR - Usable Length Diameter Ratio | 8.171428571429 |
PL - Point Length | 0.5mm |
LCF - Chip Flute Length | 37mm |
SIG - Point Angle | 140deg |
ORDCODE | 860.1-0350-028A1-GM X1BM |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 4 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-11-11 17:02:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | X1BM |
COATING | PVD TiAlSiN+TiSiN |
SUBSTRATE | HC |
TCHA - Achievable Hole Tolerance | H9 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
