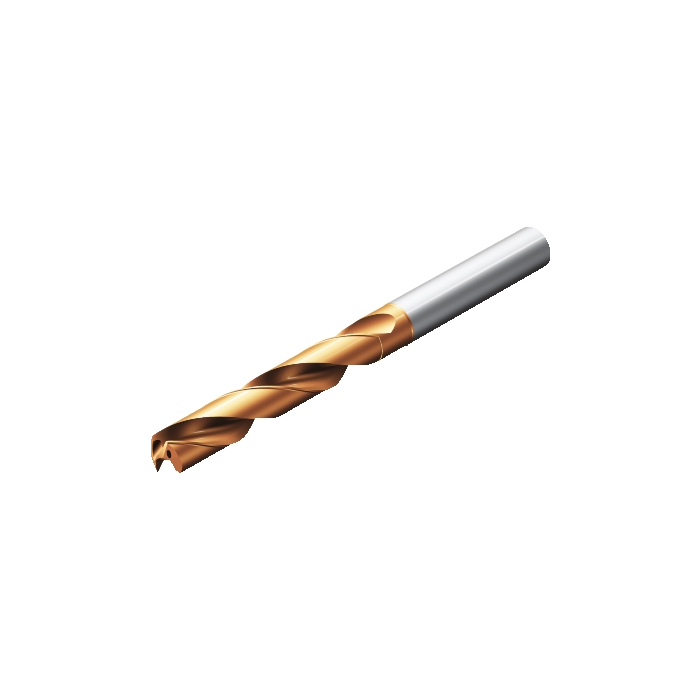

Sandvik Coromant 860.1-0555-037A1-PM 4234 CoroDrill® 860 solid carbide drill Previous Sandvik Coromant 860.1-0555-037A1-PM 4234 CoroDrill® 860 solid carbide drill

Sandvik Coromant 860.1-0556-037A1-PM 4234 CoroDrill® 860 solid carbide drill

R 2 257,45 inc. vat
In stock
SKU
6040373
CoroDrill® 860 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 860 solid carbide drill
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 81.1mm
BD - Body Diameter 5.556mm
LB - Body Length 46mm
RPMX - Rotational Speed Maximum 143231/min
WT - Weight Of Item 0.033kg
OAL - Overall Length 87mm
OHX - Maximum Overhang 45.1284mm
LSC - Clamping Length 36mm
GAMO - Orthogonal Rake Angle 19.09deg
LU - Usable Length 28.7mm
DC - Cutting Diameter 5.56mm
FHA - Flute Helix Angle 28.092521deg
ULDR - Usable Length Diameter Ratio 5.161870503597
PL - Point Length 0.9mm
LCF - Chip Flute Length 44mm
SIG - Point Angle 147deg
ORDCODE 860.1-0556-037A1-PM 4234
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2022-03-01 01:14:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 4234
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H8
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
