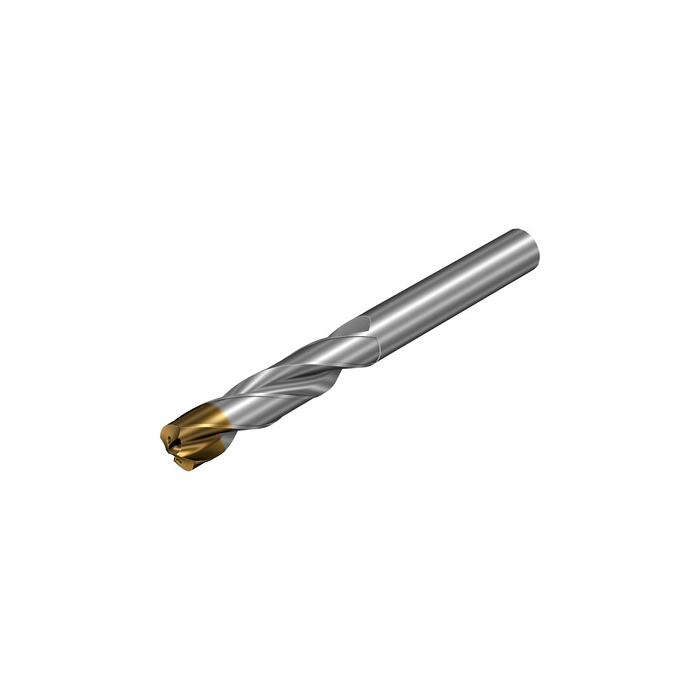

Sandvik Coromant 860.1-0600-016A1-GM X1BM CoroDrill® 860 solid carbide drill

R 1 877,95 inc. vat
In stock
SKU
7781444
CoroDrill® 860 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 860 solid carbide drill
More Information
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 64.908mm
RPMX - Rotational Speed Maximum 122021/min
WT - Weight Of Item 0.027kg
OAL - Overall Length 66mm
OHX - Maximum Overhang 29mm
GAMO - Orthogonal Rake Angle 20.45deg
LU - Usable Length 19mm
DC - Cutting Diameter 6mm
FHA - Flute Helix Angle 30deg
ULDR - Usable Length Diameter Ratio 3.166666666667
PL - Point Length 1.091911mm
LCF - Chip Flute Length 28mm
SIG - Point Angle 140deg
ORDCODE 860.1-0600-016A1-GM X1BM
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2021-11-11 16:53:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade X1BM
COATING PVD TiAlSiN+TiSiN
SUBSTRATE HC
TCHA - Achievable Hole Tolerance H9
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
