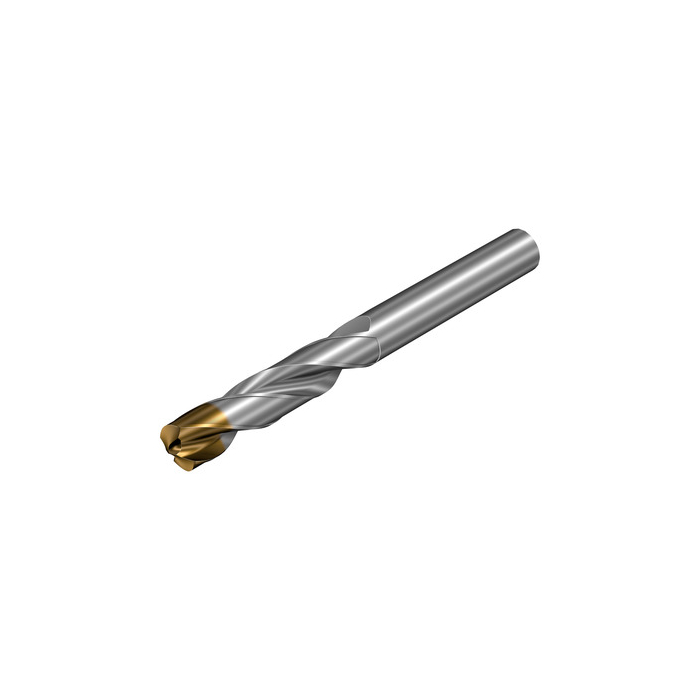

Sandvik Coromant 860.1-0600-031A0-GM X1BM CoroDrill® 860 solid carbide drill

Name: Sandvik Coromant 860.1-0600-031A0-GM X1BM CoroDrill® 860 solid carbide drill
SKU: 7781779
Price: 1877.95 ZAR
Availability: InStock

Be the first to review this product

R 1 877,95 inc. vat

In stock

SKU

7781779

CoroDrill® 860 solid carbide drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 860 solid carbide drill

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	81mm
RPMX - Rotational Speed Maximum	122021/min
WT - Weight Of Item	0.032kg
OAL - Overall Length	82mm
OHX - Maximum Overhang	45mm
GAMO - Orthogonal Rake Angle	20.45deg
LU - Usable Length	31mm
DC - Cutting Diameter	6mm
FHA - Flute Helix Angle	30deg
ULDR - Usable Length Diameter Ratio	5.166666666667
PL - Point Length	1mm
LCF - Chip Flute Length	44mm
SIG - Point Angle	140deg
ORDCODE	860.1-0600-031A0-GM X1BM
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-11-11 16:58:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	X1BM
COATING	PVD TiAlSiN+TiSiN
SUBSTRATE	HC
TCHA - Achievable Hole Tolerance	H9
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
