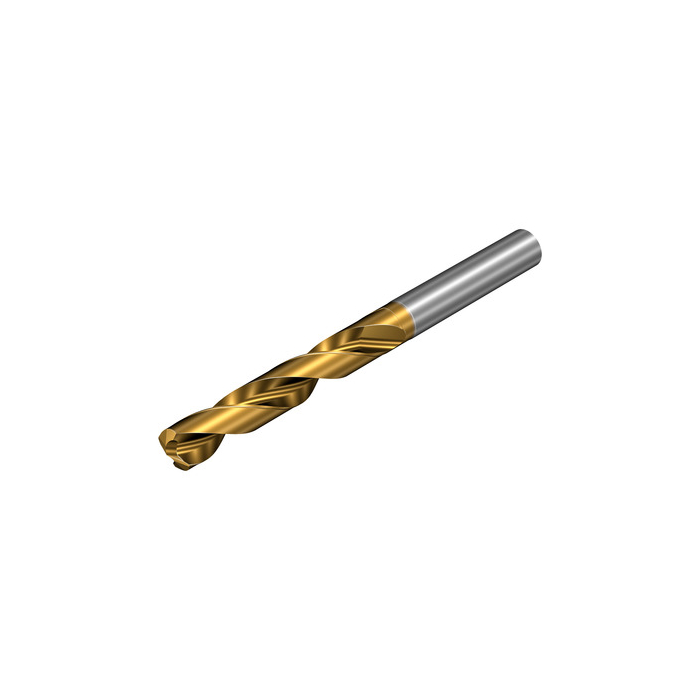

Sandvik Coromant 860.1-0600-037A0-PM P1BM CoroDrill® 860-PM solid carbide drill
R 2 012,50
inc. vat
Out of stock
SKU
8150910
CoroDrill® 860-PM solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 860-PM solid carbide drill
| DCON - Connection Diameter | 6mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 81.1mm |
| RPMX - Rotational Speed Maximum | 132631/min |
| WT - Weight Of Item | 0.036kg |
| OAL - Overall Length | 87mm |
| OHX - Maximum Overhang | 45.061mm |
| GAMO - Orthogonal Rake Angle | 20.42deg |
| LU - Usable Length | 30.9mm |
| DC - Cutting Diameter | 6mm |
| FHA - Flute Helix Angle | 29.960826deg |
| ULDR - Usable Length Diameter Ratio | 5.15 |
| PL - Point Length | 0.88864mm |
| LCF - Chip Flute Length | 44mm |
| SIG - Point Angle | 147deg |
| ORDCODE | 860.1-0600-037A0-PM P1BM |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-02-19 01:10:00.000 |
| STDLET - Standard Letter | HA |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | P1BM |
| COATING | PVD TiAlSiN+TiSiN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | DIN 6537 L |
| TCHA - Achievable Hole Tolerance | H8 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
