Sandvik Coromant 860.1-0635-019A1-MM 2214 CoroDrill® 860 solid carbide drill

R 2 212,60 inc. vat
In stock
SKU
6422696
CoroDrill® 860 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days

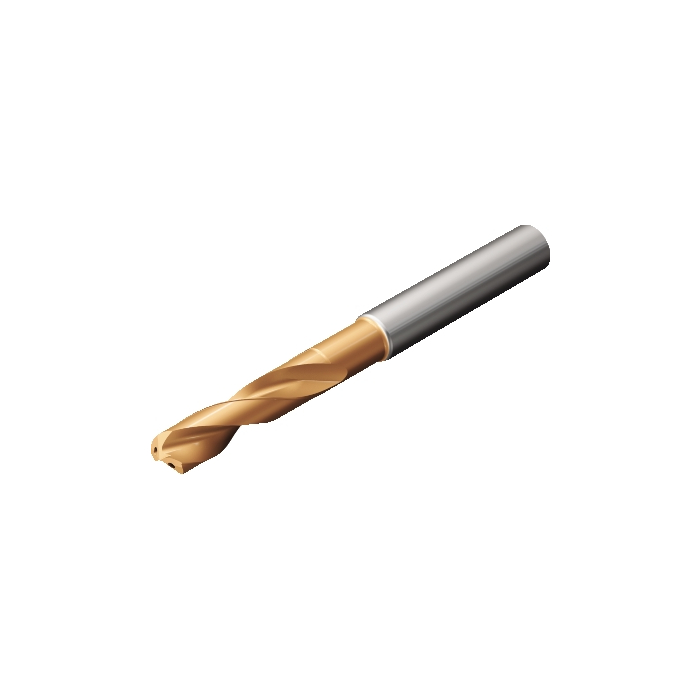

CoroDrill® 860 solid carbide drill
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 8mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 78mm
BD - Body Diameter 6.35mm
LB - Body Length 43mm
RPMX - Rotational Speed Maximum 48121/min
WT - Weight Of Item 0.048kg
OAL - Overall Length 79mm
OHX - Maximum Overhang 41.9599mm
LSC - Clamping Length 36mm
GAMO - Orthogonal Rake Angle 16.66deg
LU - Usable Length 20.1mm
DC - Cutting Diameter 6.35mm
FHA - Flute Helix Angle 24.636204deg
ULDR - Usable Length Diameter Ratio 3.165354330709
PL - Point Length 1mm
LCF - Chip Flute Length 34mm
SIG - Point Angle 140deg
ORDCODE 860.1-0635-019A1-MM 2214
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F8000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2021-11-11 16:25:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 2214
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group DIN 6537 K
TCHA - Achievable Hole Tolerance H8
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
