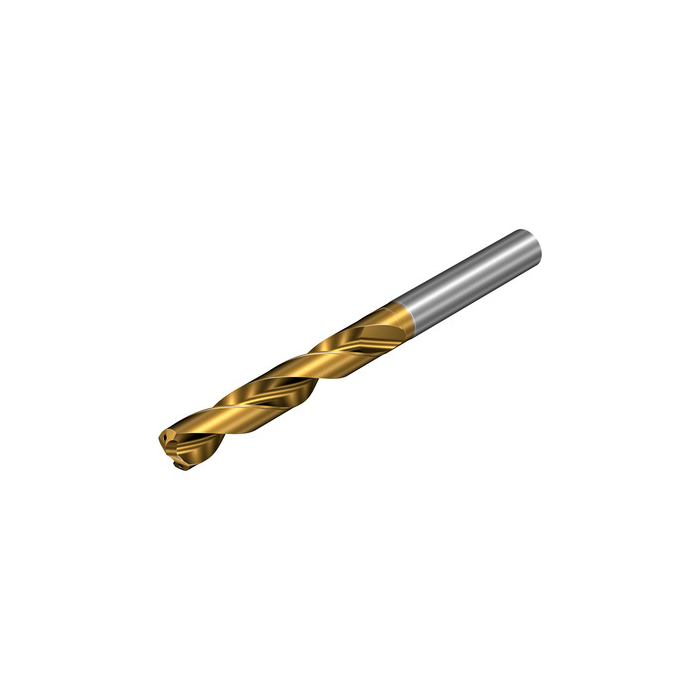

Sandvik Coromant 860.1-0800-040A1-PM P1BM CoroDrill® 860-PM solid carbide drill
Next
Sandvik Coromant 860.1-0794-064A1-PM P1BM CoroDrill® 860-PM solid carbide drill
Previous
![Sandvik Coromant 860.1-0800-040A1-PM P1BM CoroDrill® 860-PM solid carbide drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/7893173b9/sandvik-coromant-860-1-0800-040a1-pm-p1bm-corodrillr-860-pm-solid-carbide-drill.jpg)
![Sandvik Coromant 860.1-0794-064A1-PM P1BM CoroDrill® 860-PM solid carbide drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/789290021/sandvik-coromant-860-1-0794-064a1-pm-p1bm-corodrillr-860-pm-solid-carbide-drill.jpg)
R 2 367,85
inc. vat
In stock
SKU
8151260
CoroDrill® 860-PM solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 860-PM solid carbide drill
DCON - Connection Diameter | 8mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 77.7mm |
RPMX - Rotational Speed Maximum | 99471/min |
WT - Weight Of Item | 0.047kg |
OAL - Overall Length | 79mm |
OHX - Maximum Overhang | 41.7205mm |
GAMO - Orthogonal Rake Angle | 20.46deg |
LU - Usable Length | 25.3mm |
DC - Cutting Diameter | 8mm |
FHA - Flute Helix Angle | 30.017783deg |
ULDR - Usable Length Diameter Ratio | 3.1625 |
PL - Point Length | 1.184854mm |
LCF - Chip Flute Length | 41mm |
SIG - Point Angle | 147deg |
ORDCODE | 860.1-0800-028A1-PM P1BM |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F8000_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 4 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-01-12 12:05:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | P1BM |
COATING | PVD TiAlSiN+TiSiN |
SUBSTRATE | HC |
BSG - Basic Standard Group | DIN 6537 K |
TCHA - Achievable Hole Tolerance | H8 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
