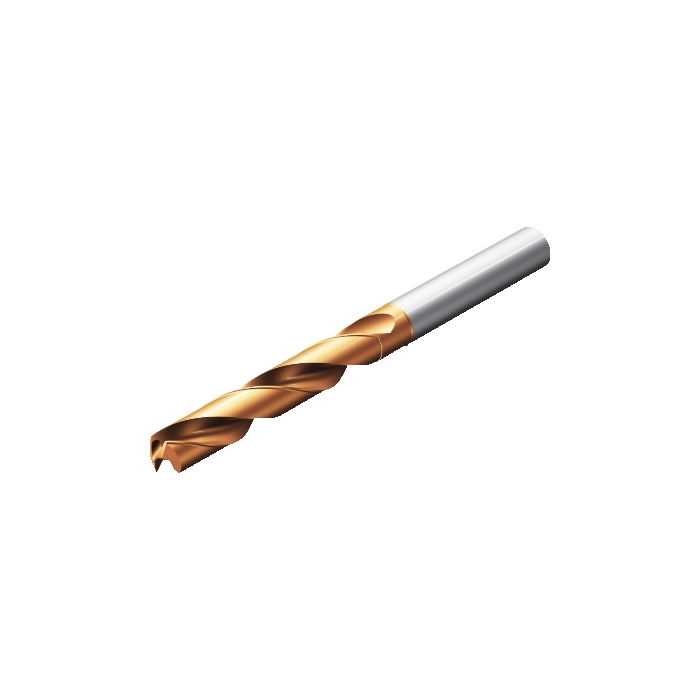

Sandvik Coromant 860.1-0800-040A0-PM 4234 CoroDrill® 860 solid carbide drill

Name: Sandvik Coromant 860.1-0800-040A0-PM 4234 CoroDrill® 860 solid carbide drill
SKU: 6040284
Price: 2212.60 ZAR
Availability: InStock

Be the first to review this product

R 2 212,60 inc. vat

In stock

SKU

6040284

CoroDrill® 860 solid carbide drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 860 solid carbide drill

More Information

More Information
DCON - Connection Diameter	8mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	89.7mm
BD - Body Diameter	8mm
LB - Body Length	55mm
RPMX - Rotational Speed Maximum	99471/min
WT - Weight Of Item	0.052kg
OAL - Overall Length	91mm
OHX - Maximum Overhang	53.7205mm
LSC - Clamping Length	36mm
GAMO - Orthogonal Rake Angle	20.46deg
LU - Usable Length	41.3mm
DC - Cutting Diameter	8mm
FHA - Flute Helix Angle	30.017783deg
ULDR - Usable Length Diameter Ratio	5.1625
PL - Point Length	1.3mm
LCF - Chip Flute Length	53mm
SIG - Point Angle	147deg
ORDCODE	860.1-0800-040A0-PM 4234
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F8000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-03-01 01:13:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	4234
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6537 L
TCHA - Achievable Hole Tolerance	H8
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
