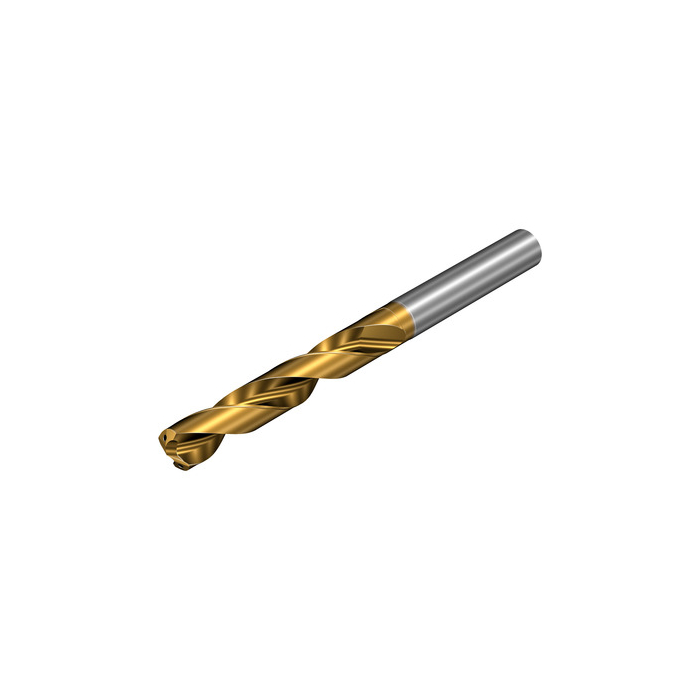

Sandvik Coromant 860.1-0800-064A1-PM P1BM CoroDrill® 860-PM solid carbide drill

Name: Sandvik Coromant 860.1-0800-064A1-PM P1BM CoroDrill® 860-PM solid carbide drill
SKU: 8151262
Price: 4460.85 ZAR
Availability: InStock

Be the first to review this product

R 4 460,85 inc. vat

In stock

SKU

8151262

CoroDrill® 860-PM solid carbide drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 860-PM solid carbide drill

More Information

More Information
DCON - Connection Diameter	8mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	114.7mm
RPMX - Rotational Speed Maximum	99471/min
WT - Weight Of Item	0.059kg
OAL - Overall Length	116mm
OHX - Maximum Overhang	78.7205mm
GAMO - Orthogonal Rake Angle	20.46deg
LU - Usable Length	64mm
DC - Cutting Diameter	8mm
FHA - Flute Helix Angle	30.017783deg
ULDR - Usable Length Diameter Ratio	8
PL - Point Length	1.184854mm
LCF - Chip Flute Length	78mm
SIG - Point Angle	147deg
ORDCODE	860.1-0800-064A1-PM P1BM
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F8000_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	4
BMC - Body Material Code	2
CHANGEDATE	2022-02-19 01:13:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	P1BM
COATING	PVD TiAlSiN+TiSiN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
TCHA - Achievable Hole Tolerance	H8
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
