Sandvik Coromant 860.1-1200-053A0-PM P1BM CoroDrill® 860-PM solid carbide drill

R 3 907,70 inc. vat
Out of stock
SKU
8151017
CoroDrill® 860-PM solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days

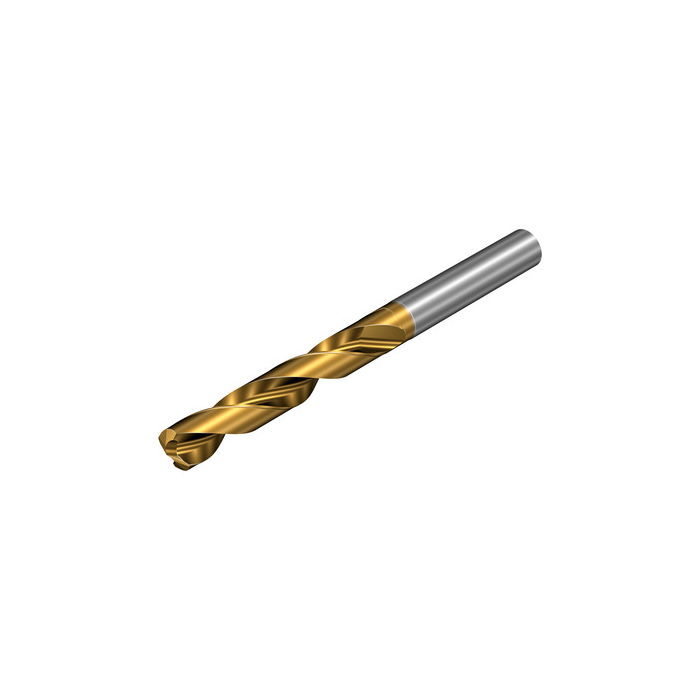

CoroDrill® 860-PM solid carbide drill
More Information
DCON - Connection Diameter 12mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 116mm
RPMX - Rotational Speed Maximum 66311/min
WT - Weight Of Item 0.147kg
OAL - Overall Length 118mm
OHX - Maximum Overhang 71.0474mm
GAMO - Orthogonal Rake Angle 20.53deg
LU - Usable Length 53mm
DC - Cutting Diameter 12mm
FHA - Flute Helix Angle 30.113147deg
ULDR - Usable Length Diameter Ratio 4.416666666667
PL - Point Length 1.777281mm
LCF - Chip Flute Length 71mm
SIG - Point Angle 147deg
ORDCODE 860.1-1200-053A0-PM P1BM
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-02-19 01:11:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade P1BM
COATING PVD TiAlSiN+TiSiN
SUBSTRATE HC
BSG - Basic Standard Group DIN 6537 K
TCHA - Achievable Hole Tolerance H8
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
