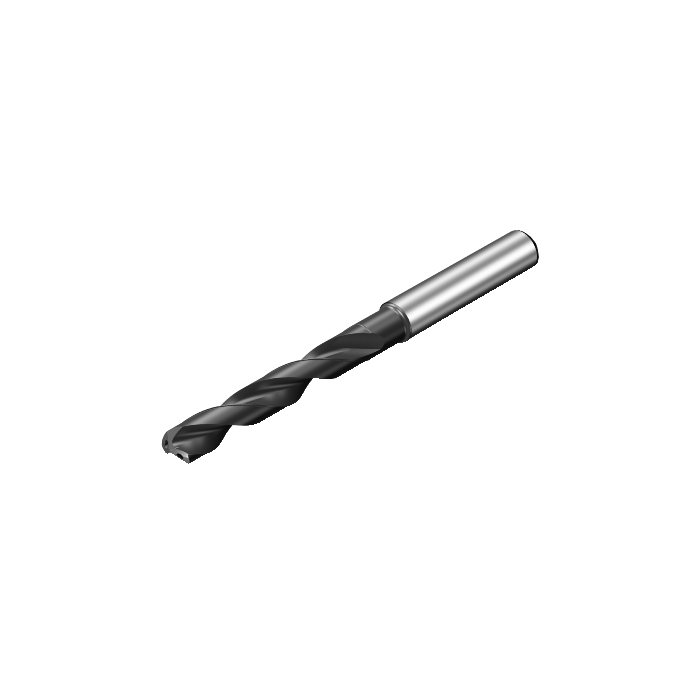

Sandvik Coromant 860.1-1200-054A1-SM 1210 corodrill® 860 solid carbide drill

Name: Sandvik Coromant 860.1-1200-054A1-SM 1210 corodrill® 860 solid carbide drill
SKU: 7798324
Price: 4908.20 ZAR
Availability: InStock

Be the first to review this product

R 4 908,20 inc. vat

In stock

SKU

7798324

corodrill® 860 solid carbide drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

corodrill® 860 solid carbide drill

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	115.99mm
RPMX - Rotational Speed Maximum	18571/min
WT - Weight Of Item	0.143kg
OAL - Overall Length	118mm
OHX - Maximum Overhang	73mm
GAMO - Orthogonal Rake Angle	20.52deg
LU - Usable Length	54.3mm
DC - Cutting Diameter	12mm
FHA - Flute Helix Angle	30.1deg
ULDR - Usable Length Diameter Ratio	4.525
PL - Point Length	2.18mm
LCF - Chip Flute Length	71mm
SIG - Point Angle	140deg
ORDCODE	860.1-1200-054A1-SM 1210
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	4
BMC - Body Material Code	2
CHANGEDATE	2022-07-04 17:45:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1210
COATING	PVD AlTiN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6537 L
TCHA - Achievable Hole Tolerance	H9
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
