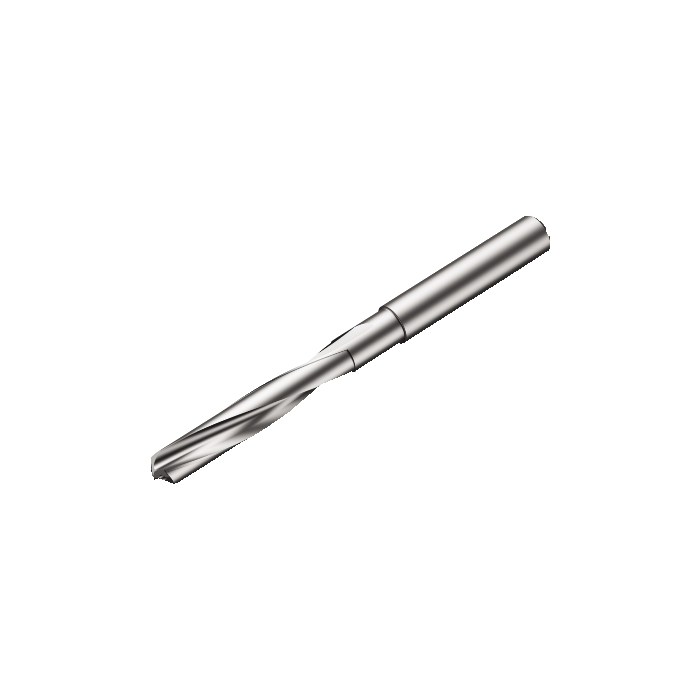

Sandvik Coromant 860.1-1800-054A1-NM H10F CoroDrill® 860 solid carbide drill
R 8 810,15
inc. vat
In stock
SKU
6253835
CoroDrill® 860 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 860 solid carbide drill
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 18mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 120.6mm |
| BD - Body Diameter | 18mm |
| LB - Body Length | 75mm |
| RPMX - Rotational Speed Maximum | 84881/min |
| WT - Weight Of Item | 0.352kg |
| OAL - Overall Length | 123mm |
| OHX - Maximum Overhang | 72.588mm |
| LSC - Clamping Length | 48mm |
| GAMO - Orthogonal Rake Angle | 10.05deg |
| LU - Usable Length | 56.4mm |
| DC - Cutting Diameter | 18mm |
| FHA - Flute Helix Angle | 15.002885deg |
| ULDR - Usable Length Diameter Ratio | 3.133333333333 |
| PL - Point Length | 2.4mm |
| LCF - Chip Flute Length | 73mm |
| SIG - Point Angle | 130deg |
| ORDCODE | 860.1-1800-054A1-NM H10F |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1800_1 |
| CNSC - Coolant Entry Style Code | 4 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-12-21 11:35:00.000 |
| STDLET - Standard Letter | HA |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | H10F |
| SUBSTRATE | HF |
| BSG - Basic Standard Group | DIN 6537 K |
| TCHA - Achievable Hole Tolerance | H7 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
