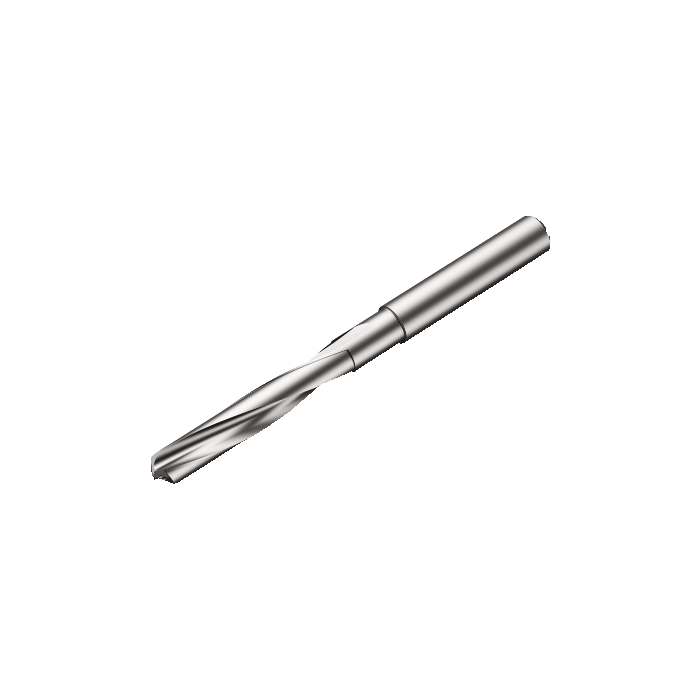

Sandvik Coromant 860.1-2000-060A1-NM H10F CoroDrill® 860 solid carbide drill
R 12 241,75
inc. vat
Out of stock
SKU
6253839
CoroDrill® 860 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 860 solid carbide drill
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 20mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 128.3mm |
| BD - Body Diameter | 20mm |
| LB - Body Length | 81mm |
| RPMX - Rotational Speed Maximum | 76391/min |
| WT - Weight Of Item | 0.342kg |
| OAL - Overall Length | 131mm |
| OHX - Maximum Overhang | 78.32mm |
| LSC - Clamping Length | 50mm |
| GAMO - Orthogonal Rake Angle | 10.05deg |
| LU - Usable Length | 62.7mm |
| DC - Cutting Diameter | 20mm |
| FHA - Flute Helix Angle | 14.999491deg |
| ULDR - Usable Length Diameter Ratio | 3.135 |
| PL - Point Length | 2.7mm |
| LCF - Chip Flute Length | 79mm |
| SIG - Point Angle | 130deg |
| ORDCODE | 860.1-2000-060A1-NM H10F |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G2000_1 |
| CNSC - Coolant Entry Style Code | 4 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-11-22 06:27:00.000 |
| STDLET - Standard Letter | HA |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | H10F |
| SUBSTRATE | HF |
| BSG - Basic Standard Group | DIN 6537 K |
| TCHA - Achievable Hole Tolerance | H7 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
