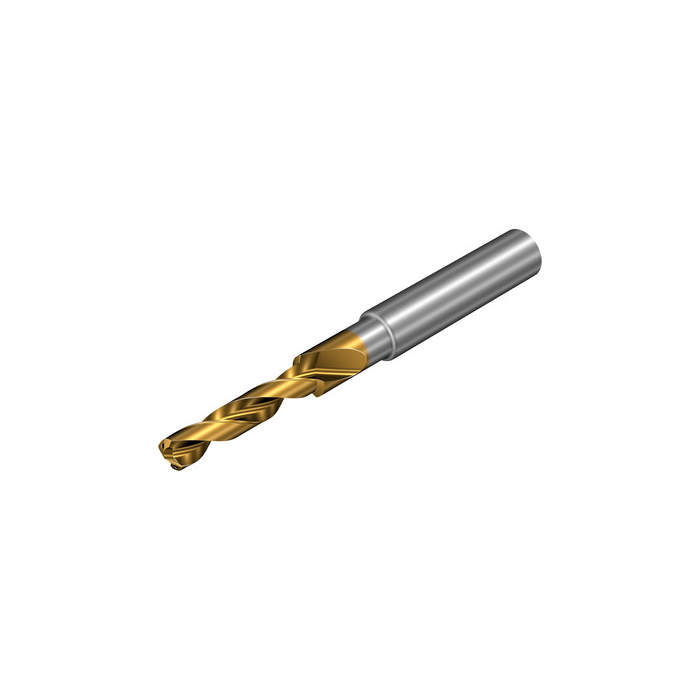

Sandvik Coromant 860.2-1510-046A1-PM P1BM CoroDrill® 860-PM solid carbide step and chamfer drill

Name: Sandvik Coromant 860.2-1510-046A1-PM P1BM CoroDrill® 860-PM solid carbide step and chamfer drill
SKU: 8151537
Price: 13828.75 ZAR
Availability: InStock

Be the first to review this product

R 13 828,75 inc. vat

In stock

SKU

8151537

CoroDrill® 860-PM solid carbide step and chamfer drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 860-PM solid carbide step and chamfer drill

More Information

More Information
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	139.6mm
RPMX - Rotational Speed Maximum	500001/min
WT - Weight Of Item	0.45kg
OAL - Overall Length	142mm
OHX - Maximum Overhang	89.61mm
GAMO - Orthogonal Rake Angle	18.67deg
LU - Usable Length	50.6mm
DC - Cutting Diameter	19.6mm
FHA - Flute Helix Angle	27.5deg
PL - Point Length	2.4mm
SIG - Point Angle	147deg
SDL - Step Diameter Length	46mm
STA - Step Included Angle	90deg
ORDCODE	860.2-1510-046A1-PM P1BM
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G2000_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	4
BMC - Body Material Code	2
CHANGEDATE	2022-10-04 13:15:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	P1BM
COATING	PVD TiAlSiN+TiSiN
SUBSTRATE	HC
TCHA - Achievable Hole Tolerance	H8
ZEFP - Peripheral Effective Cutting Edge Count	2
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
