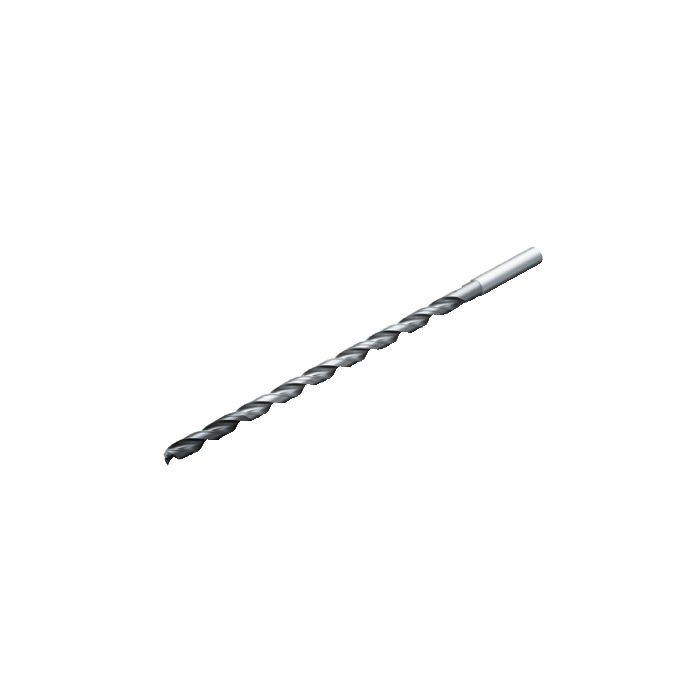

Sandvik Coromant 861.1-0450-090A1-GM GC34 CoroDrill® 861 solid carbide drill

R 5 814,40 inc. vat
In stock
SKU
6150983
CoroDrill® 861 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 861 solid carbide drill
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 144.8mm
BD - Body Diameter 4.5mm
LB - Body Length 109.5mm
RPMX - Rotational Speed Maximum 206551/min
WT - Weight Of Item 0.045kg
OAL - Overall Length 146mm
OHX - Maximum Overhang 108.7629mm
LSC - Clamping Length 36mm
GAMO - Orthogonal Rake Angle 21.99deg
LU - Usable Length 90.7mm
DC - Cutting Diameter 4.5mm
FHA - Flute Helix Angle 32.141908deg
ULDR - Usable Length Diameter Ratio 20.155555555556
PL - Point Length 0.7mm
LCF - Chip Flute Length 104mm
SIG - Point Angle 140deg
ORDCODE 861.1-0450-090A1-GM GC34
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 12:53:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade GC34
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H9
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
