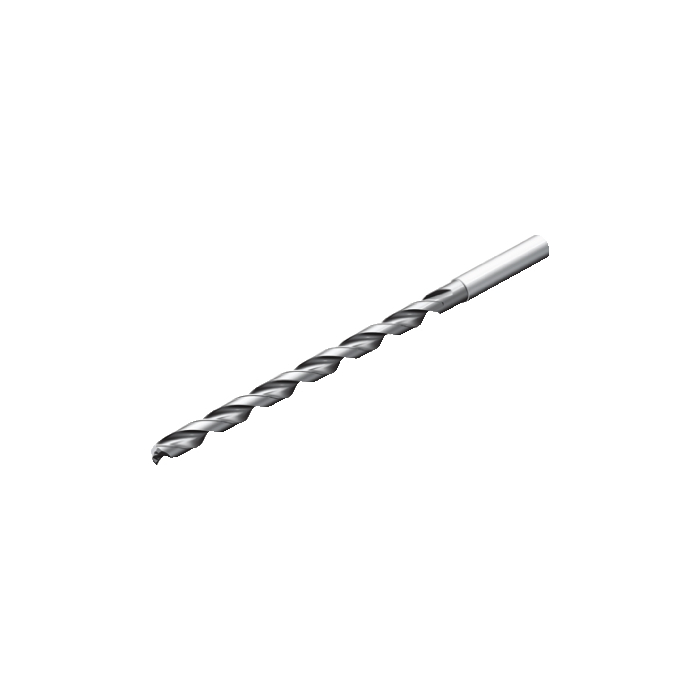

Sandvik Coromant 861.1-0770-092A1-GM GC34 CoroDrill® 861 solid carbide drill

R 4 931,20 inc. vat
In stock
SKU
6151070
CoroDrill® 861 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 861 solid carbide drill
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 8mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 156.7mm
BD - Body Diameter 7.7mm
LB - Body Length 122mm
RPMX - Rotational Speed Maximum 133941/min
WT - Weight Of Item 0.07kg
OAL - Overall Length 158mm
OHX - Maximum Overhang 120.7387mm
LSC - Clamping Length 36mm
GAMO - Orthogonal Rake Angle 23.81deg
LU - Usable Length 93.7mm
DC - Cutting Diameter 7.7mm
FHA - Flute Helix Angle 34.650304deg
ULDR - Usable Length Diameter Ratio 12.168831168831
PL - Point Length 1.3mm
LCF - Chip Flute Length 116mm
SIG - Point Angle 140deg
ORDCODE 861.1-0770-092A1-GM GC34
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F8000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 11:29:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade GC34
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H9
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
