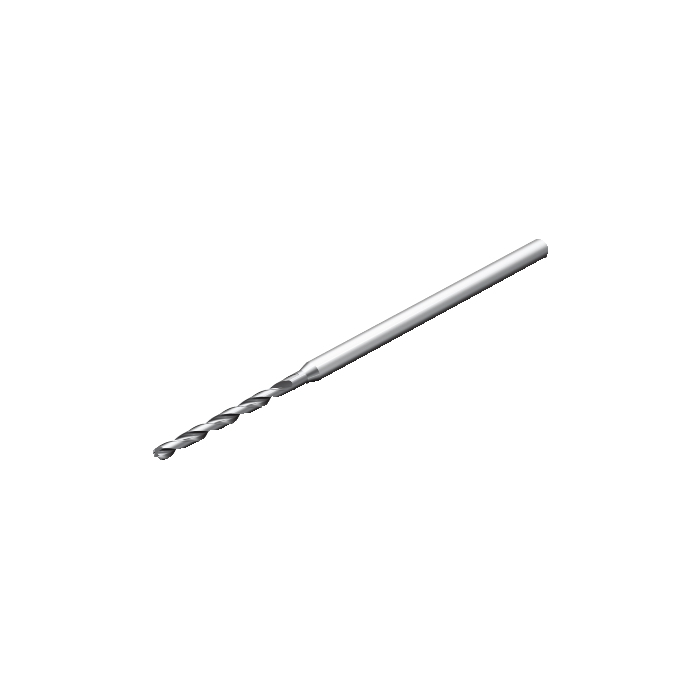

Sandvik Coromant 862.1-0226-027A1-GM GC34 CoroDrill® 862 Solid carbide drill
Next
Sandvik Coromant 862.1-0225-027A1-GM GC34 CoroDrill® 862 Solid carbide drill
Previous
![Sandvik Coromant 862.1-0226-027A1-GM GC34 CoroDrill® 862 Solid carbide drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/748574a39/sandvik-coromant-862-1-0226-027a1-gm-gc34-corodrillr-862-solid-carbide-drill.jpg)
![Sandvik Coromant 862.1-0225-027A1-GM GC34 CoroDrill® 862 Solid carbide drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/74855cc74/sandvik-coromant-862-1-0225-027a1-gm-gc34-corodrillr-862-solid-carbide-drill.jpg)
R 2 960,10
inc. vat
In stock
SKU
6151175
CoroDrill® 862 Solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 862 Solid carbide drill
CP - Coolant Pressure | 4000000Pa |
---|---|
DCON - Connection Diameter | 3mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 77.6mm |
BD - Body Diameter | 2.26mm |
LB - Body Length | 29mm |
RPMX - Rotational Speed Maximum | 338031/min |
WT - Weight Of Item | 0.012kg |
OAL - Overall Length | 78mm |
OHX - Maximum Overhang | 28.6299mm |
LSC - Clamping Length | 36mm |
GAMO - Orthogonal Rake Angle | 20.16deg |
LU - Usable Length | 18.5mm |
DC - Cutting Diameter | 2.26mm |
FHA - Flute Helix Angle | 29.596573deg |
ULDR - Usable Length Diameter Ratio | 8.185840707965 |
PL - Point Length | 0.4mm |
LCF - Chip Flute Length | 25mm |
SIG - Point Angle | 140deg |
ORDCODE | 862.1-0226-018A1-GM GC34 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_F3000_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 4 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-05-07 01:06:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | GC34 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
TCHA - Achievable Hole Tolerance | H9 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
