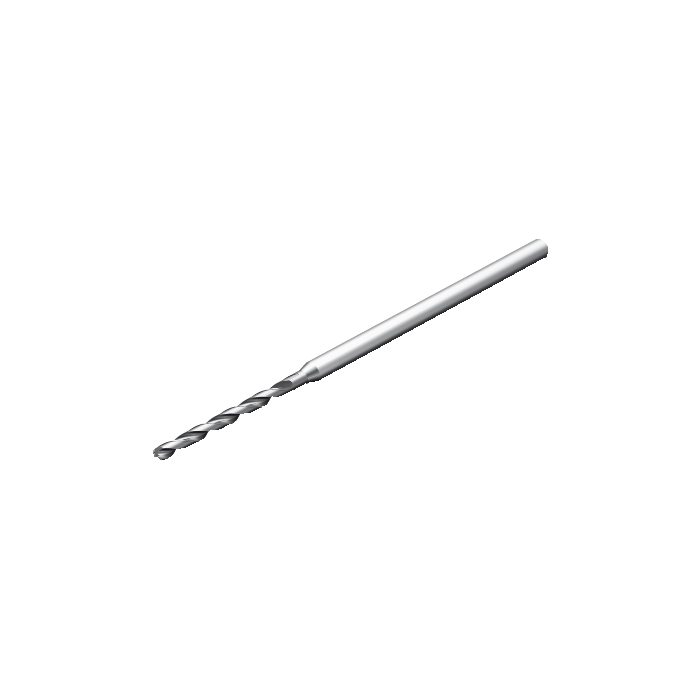

Sandvik Coromant 862.1-0238-029A1-GM GC34 CoroDrill® 862 Solid carbide drill
R 3 476,45
inc. vat
In stock
SKU
6151180
CoroDrill® 862 Solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 862 Solid carbide drill
| CP - Coolant Pressure | 4000000Pa |
|---|---|
| DCON - Connection Diameter | 3mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 77.6mm |
| BD - Body Diameter | 2.381mm |
| LB - Body Length | 40mm |
| RPMX - Rotational Speed Maximum | 320851/min |
| WT - Weight Of Item | 0.013kg |
| OAL - Overall Length | 78mm |
| OHX - Maximum Overhang | 39.6101mm |
| LSC - Clamping Length | 36mm |
| GAMO - Orthogonal Rake Angle | 21.09deg |
| LU - Usable Length | 29mm |
| DC - Cutting Diameter | 2.38mm |
| FHA - Flute Helix Angle | 30.896748deg |
| ULDR - Usable Length Diameter Ratio | 12.18487394958 |
| PL - Point Length | 0.4mm |
| LCF - Chip Flute Length | 36mm |
| SIG - Point Angle | 140deg |
| ORDCODE | 862.1-0238-029A1-GM GC34 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_F3000_1 |
| CNSC - Coolant Entry Style Code | 4 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-09-15 09:55:00.000 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | GC34 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | COROMANT |
| TCHA - Achievable Hole Tolerance | H9 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
