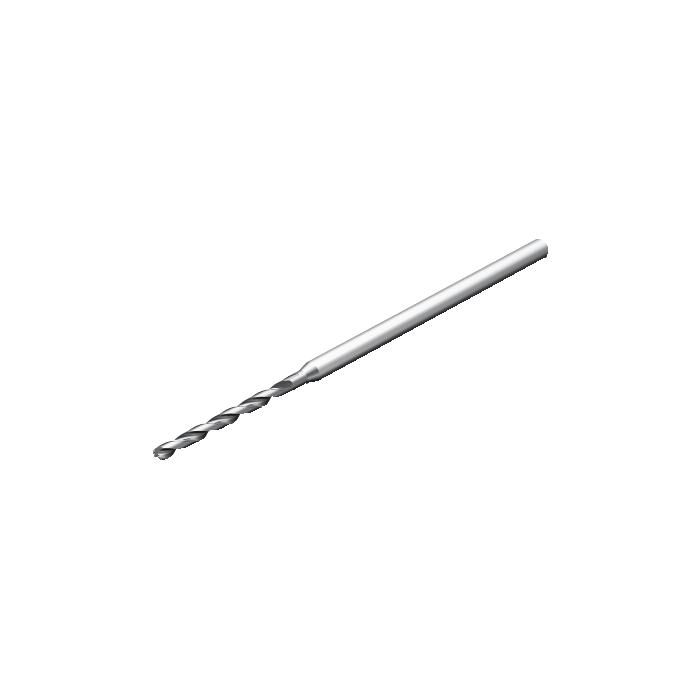

Sandvik Coromant 862.1-0270-032A1-GM GC34 CoroDrill® 862 Solid carbide drill Previous Sandvik Coromant 862.1-0270-032A1-GM GC34 CoroDrill® 862 Solid carbide drill

Sandvik Coromant 862.1-0271-022A1-GM GC34 CoroDrill® 862 Solid carbide drill

R 2 960,10 inc. vat
In stock
SKU
6151195
CoroDrill® 862 Solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 862 Solid carbide drill
More Information
CP - Coolant Pressure 4000000Pa
DCON - Connection Diameter 3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 83.6mm
BD - Body Diameter 2.71mm
LB - Body Length 34mm
RPMX - Rotational Speed Maximum 281901/min
WT - Weight Of Item 0.014kg
OAL - Overall Length 84mm
OHX - Maximum Overhang 33.5562mm
LSC - Clamping Length 36mm
GAMO - Orthogonal Rake Angle 20.75deg
LU - Usable Length 22.1mm
DC - Cutting Diameter 2.71mm
FHA - Flute Helix Angle 30.419446deg
ULDR - Usable Length Diameter Ratio 8.154981549815
PL - Point Length 0.4mm
LCF - Chip Flute Length 30mm
SIG - Point Angle 140deg
ORDCODE 862.1-0271-022A1-GM GC34
ADINTMS - Adaptive Interface Machine Direction M_CYLR_F3000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2022-05-07 01:07:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade GC34
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H9
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
