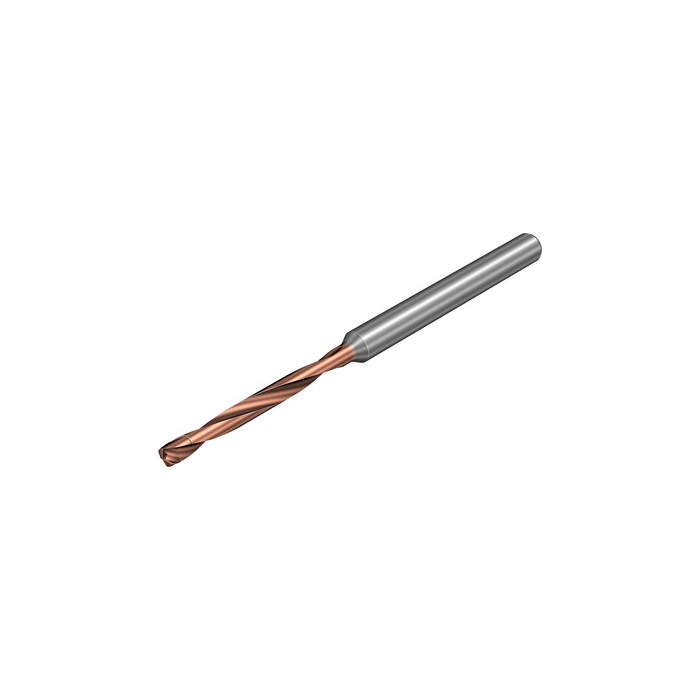

Sandvik Coromant 862.1-0500-045A0-GM X2BL CoroDrill® 862-GM Solid carbide micro drill

R 1 553,65 inc. vat
In stock
SKU
8172850
CoroDrill® 862-GM Solid carbide micro drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 862-GM Solid carbide micro drill
More Information
DCON - Connection Diameter 3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 37.91mm
RPMX - Rotational Speed Maximum 763951/min
WT - Weight Of Item 0.003kg
OAL - Overall Length 38mm
OHX - Maximum Overhang 7.97mm
GAMO - Orthogonal Rake Angle 20.45deg
LU - Usable Length 4.5mm
DC - Cutting Diameter 0.5mm
FHA - Flute Helix Angle 30deg
ULDR - Usable Length Diameter Ratio 9
PL - Point Length 0.090993mm
LCF - Chip Flute Length 5.5mm
SIG - Point Angle 140deg
ORDCODE 862.1-0500-045A0-GM X2BL
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F3000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-09-06 14:06:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade X2BL
COATING PVD TiAlSiN
SUBSTRATE HC
TCHA - Achievable Hole Tolerance H7
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
