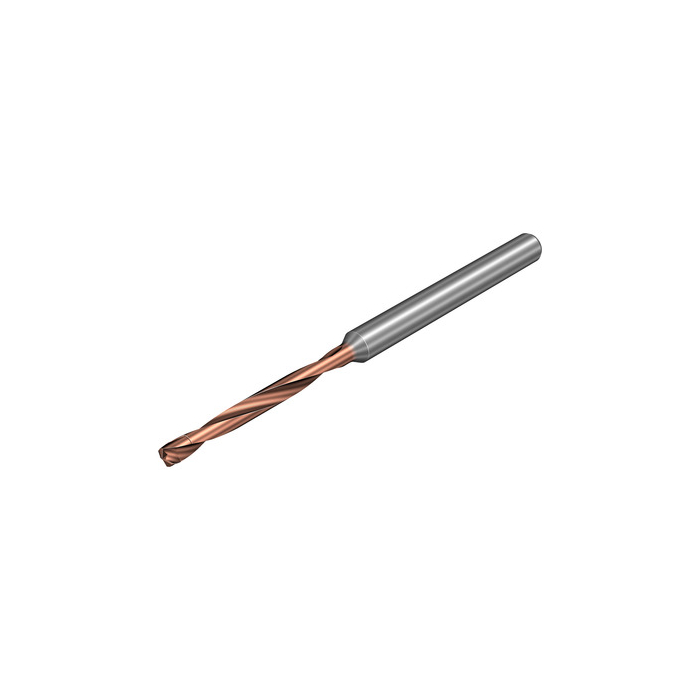

Sandvik Coromant 862.1-0750-067A0-GM X2BL CoroDrill® 862-GM Solid carbide micro drill
R 1 639,90
inc. vat
In stock
SKU
8172855
CoroDrill® 862-GM Solid carbide micro drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 862-GM Solid carbide micro drill
| DCON - Connection Diameter | 3mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 39.86mm |
| RPMX - Rotational Speed Maximum | 509301/min |
| WT - Weight Of Item | 0.004kg |
| OAL - Overall Length | 40mm |
| OHX - Maximum Overhang | 10.51mm |
| GAMO - Orthogonal Rake Angle | 20.45deg |
| LU - Usable Length | 6.75mm |
| DC - Cutting Diameter | 0.75mm |
| FHA - Flute Helix Angle | 30deg |
| ULDR - Usable Length Diameter Ratio | 9 |
| PL - Point Length | 0.136489mm |
| LCF - Chip Flute Length | 8.3mm |
| SIG - Point Angle | 140deg |
| ORDCODE | 862.1-0750-067A0-GM X2BL |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F3000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-02-15 17:09:00.000 |
| STDLET - Standard Letter | HA |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | X2BL |
| COATING | PVD TiAlSiN |
| SUBSTRATE | HC |
| TCHA - Achievable Hole Tolerance | H7 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
