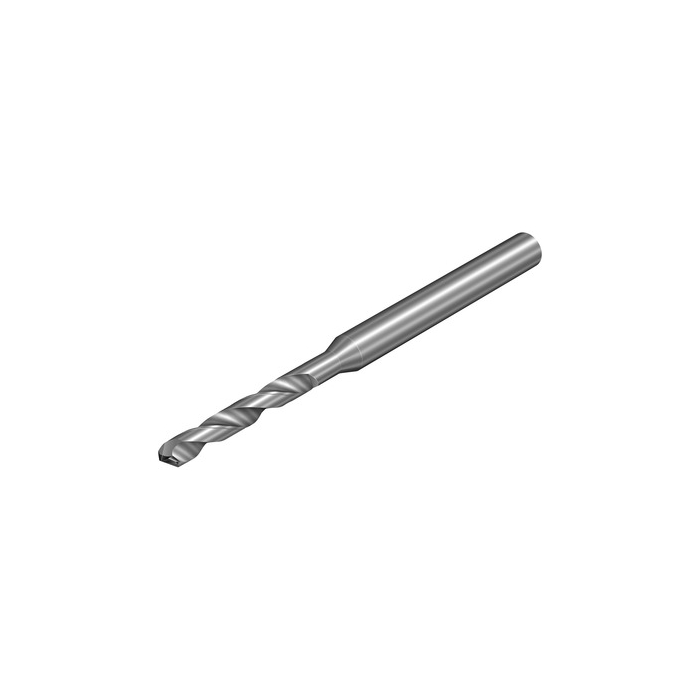

Sandvik Coromant 862.1-1500-120A0-GM X1DU CoroDrill® 862-GM Solid carbide micro drill
R 8 285,75
inc. vat
Out of stock
SKU
8078388
CoroDrill® 862-GM Solid carbide micro drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 862-GM Solid carbide micro drill
| DCON - Connection Diameter | 3mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 37.049mm |
| RPMX - Rotational Speed Maximum | 490001/min |
| WT - Weight Of Item | 6g |
| OAL - Overall Length | 37.5mm |
| OHX - Maximum Overhang | 18.927mm |
| GAMO - Orthogonal Rake Angle | 20.45deg |
| LU - Usable Length | 12mm |
| DC - Cutting Diameter | 1.5mm |
| FHA - Flute Helix Angle | 30deg |
| ULDR - Usable Length Diameter Ratio | 8 |
| PL - Point Length | 0.451mm |
| LCF - Chip Flute Length | 14.6mm |
| SIG - Point Angle | 118deg |
| ORDCODE | 862.1-1500-120A0-GM X1DU |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_F3000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-03-02 21:06:00.000 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h7 |
| Grade | X1DU |
| SUBSTRATE | DP |
| TCHA - Achievable Hole Tolerance | H7 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
