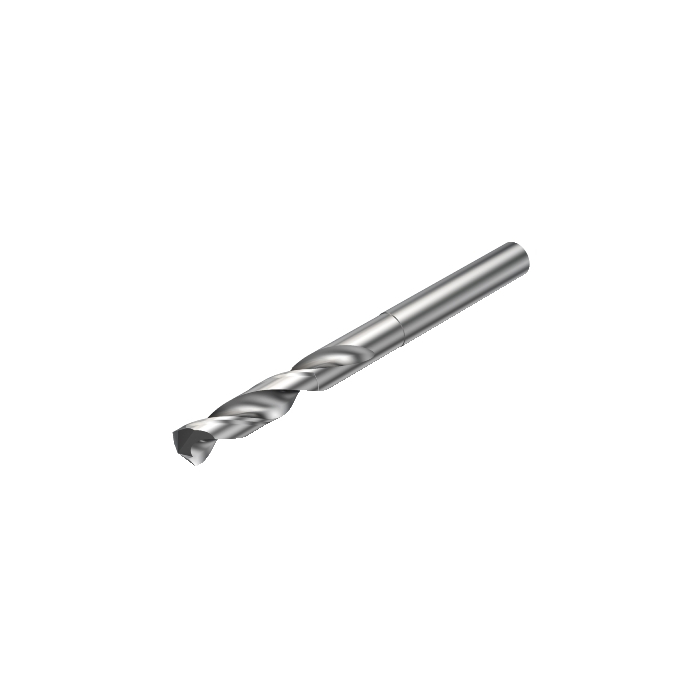

Sandvik Coromant 863.1-1112-043A1-OS H10F CoroDrill® 863 solid carbide drill

R 7 011,55 inc. vat
Out of stock
SKU
6882087
CoroDrill® 863 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 863 solid carbide drill
More Information
CP - Coolant Pressure 900000Pa
DCON - Connection Diameter 12mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100.38mm
BD - Body Diameter 11.122mm
LB - Body Length 60mm
BHTA - Body Half Taper Angle 45deg
RPMX - Rotational Speed Maximum 12001/min
WT - Weight Of Item 0.123kg
OAL - Overall Length 105mm
OHX - Maximum Overhang 55.81mm
GAMO - Orthogonal Rake Angle 16.22deg
LU - Usable Length 43mm
DC - Cutting Diameter 11.122mm
FHA - Flute Helix Angle 24deg
ULDR - Usable Length Diameter Ratio 3.866211113109
TCHAL - Achievable Hole Tolerance Lower 11.122mm
TCHAU - Achievable Hole Tolerance Upper 11.144mm
PL - Point Length 4.62mm
LCF - Chip Flute Length 58mm
SIG - Point Angle 135deg
ORDCODE 863.1-1112-043A1-OS H10F
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2021-12-22 14:40:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade H10F
SUBSTRATE HF
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H8
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
