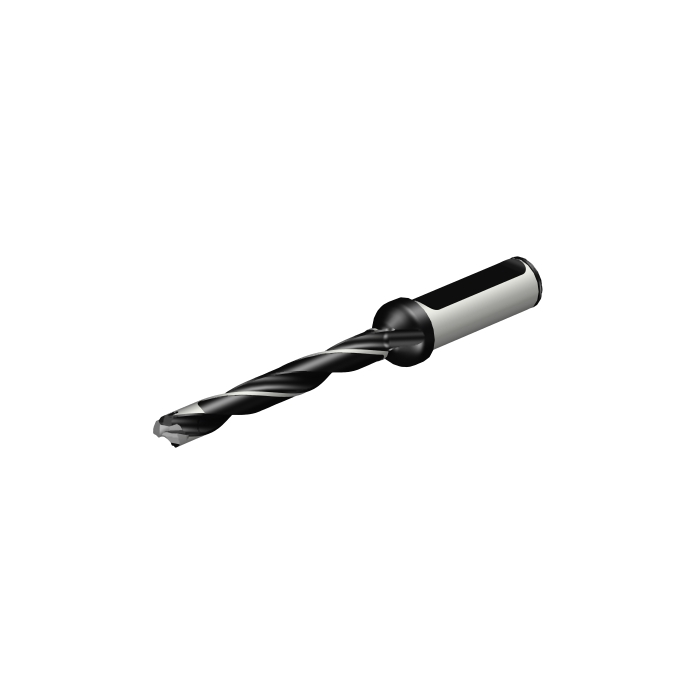

Sandvik Coromant 870-1000-6L16-8 CoroDrill® 870 exchangeable tip drill

R 5 281,95 inc. vat
Out of stock
SKU
6085523
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
More Information
CP - Coolant Pressure 1500000Pa
DCON - Connection Diameter 16mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 4.6mm
BD - Body Diameter 9.8mm
LB - Body Length 88mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.6Nm
RPMX - Rotational Speed Maximum 120001/min
WT - Weight Of Item 0.116kg
OAL - Overall Length 149mm
OHX - Maximum Overhang 99.4mm
LSC - Clamping Length 48mm
Insert Thickness 4.16mm
H - Shank Height 14.2mm
LU - Usable Length 85.54mm
INSL - Insert Length 6.2mm
DC - Cutting Diameter 10.4mm
FHA - Flute Helix Angle 20deg
DCX - Maximum Cutting Diameter 10.49mm
ULDR - Usable Length Diameter Ratio 8.225
PL - Point Length 1.6mm
SIG - Point Angle 142deg
DCN - Minimum Cutting Diameter 10mm
ORDCODE 870-1000-6L16-8
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_G1600_2
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-01-19 15:04:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DK06_1
Hand R
MIID - Master Insert Identification 870-1040-6-PM
SSC - Insert Seat Size Code 6
TCDCON - Connection Diameter Tolerance h6
TCHA - Achievable Hole Tolerance H9
CICT - Cutting Item Count 1
NOF - Flute Count 2
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
