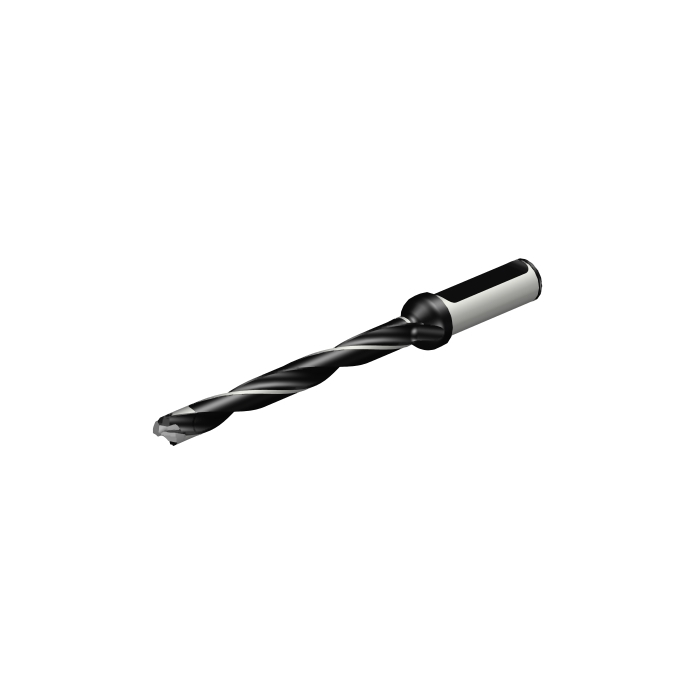

Sandvik Coromant 870-1100-8L16-10 CoroDrill® 870 exchangeable tip drill

R 7 713,05 inc. vat
In stock
SKU
6341259
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
More Information
CP - Coolant Pressure 3000000Pa
DCON - Connection Diameter 16mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 5.15mm
BD - Body Diameter 10.8mm
LB - Body Length 119mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.6Nm
RPMX - Rotational Speed Maximum 90001/min
WT - Weight Of Item 0.133kg
OAL - Overall Length 180mm
OHX - Maximum Overhang 130.25mm
LSC - Clamping Length 48mm
Insert Thickness 4.46mm
H - Shank Height 14.2mm
LU - Usable Length 116.66mm
INSL - Insert Length 6.9mm
DC - Cutting Diameter 11.4mm
FHA - Flute Helix Angle 20deg
DCX - Maximum Cutting Diameter 11.49mm
ULDR - Usable Length Diameter Ratio 10.233333333333
PL - Point Length 1.75mm
SIG - Point Angle 142deg
DCN - Minimum Cutting Diameter 11mm
ORDCODE 870-1100-8L16-10
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_G1600_2
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-01-19 15:05:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DK08_1
Hand R
MIID - Master Insert Identification 870-1140-8-PM
SSC - Insert Seat Size Code 8
TCDCON - Connection Diameter Tolerance h6
TCHA - Achievable Hole Tolerance H10
CICT - Cutting Item Count 1
NOF - Flute Count 2
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
