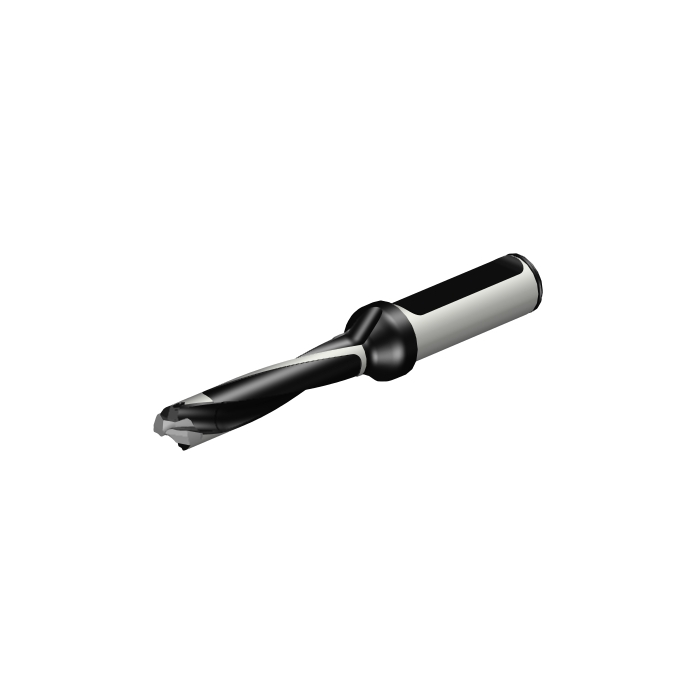

Sandvik Coromant 870-1200-10L16-5 CoroDrill® 870 exchangeable tip drill

Name: Sandvik Coromant 870-1200-10L16-5 CoroDrill® 870 exchangeable tip drill
SKU: 6035634
Price: 4713.85 ZAR
Availability: OutOfStock

Be the first to review this product

R 4 713,85 inc. vat

Out of stock

SKU

6035634

CoroDrill® 870 exchangeable tip drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 870 exchangeable tip drill

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	5.6mm
BD - Body Diameter	11.7mm
LB - Body Length	66mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	0.9Nm
RPMX - Rotational Speed Maximum	150001/min
WT - Weight Of Item	0.117kg
OAL - Overall Length	127mm
OHX - Maximum Overhang	77.1mm
LSC - Clamping Length	48mm
Insert Thickness	4.66mm
H - Shank Height	14.2mm
LU - Usable Length	64.36mm
INSL - Insert Length	7.5mm
DC - Cutting Diameter	12.4mm
FHA - Flute Helix Angle	20deg
DCX - Maximum Cutting Diameter	12.49mm
ULDR - Usable Length Diameter Ratio	5.190322580645
PL - Point Length	1.9mm
SIG - Point Angle	142deg
DCN - Minimum Cutting Diameter	12mm
ORDCODE	870-1200-10L16-5
ADINTMS - Adaptive Interface Machine Direction	M_CYLISO_G1600_2
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-01-19 14:49:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DK10_1
Hand	R
MIID - Master Insert Identification	870-1240-10-PM
SSC - Insert Seat Size Code	10
TCDCON - Connection Diameter Tolerance	h6
TCHA - Achievable Hole Tolerance	H9
CICT - Cutting Item Count	1
NOF - Flute Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
