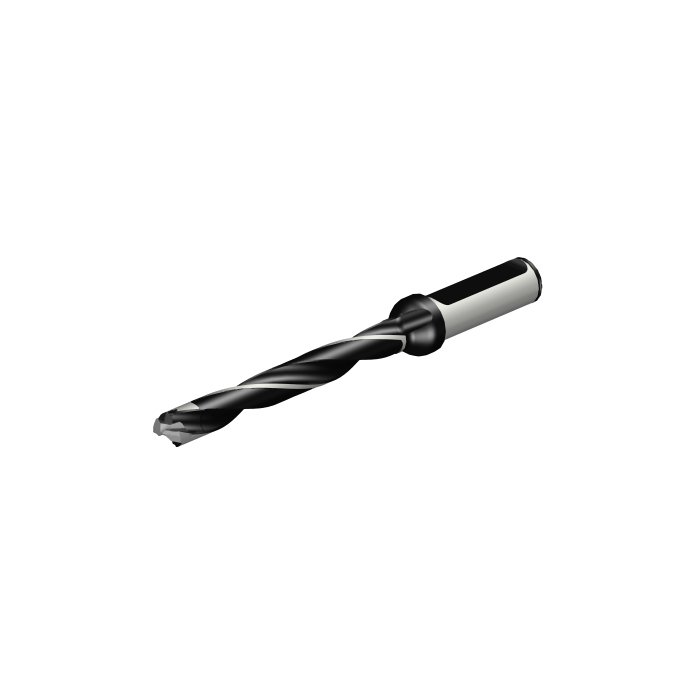

Sandvik Coromant 870-1200-10LX063-8 CoroDrill® 870 exchangeable tip drill

R 5 613,15 inc. vat
In stock
SKU
6085532
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
More Information
CP - Coolant Pressure 1500000Pa
DCON - Connection Diameter 15.875mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 5.6mm
BD - Body Diameter 11.7mm
LB - Body Length 105mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.9Nm
RPMX - Rotational Speed Maximum 100001/min
WT - Weight Of Item 132g
OAL - Overall Length 166mm
OHX - Maximum Overhang 116.1mm
LSC - Clamping Length 48mm
Insert Thickness 4.66mm
H - Shank Height 13.9mm
LU - Usable Length 101.83mm
INSL - Insert Length 7.5mm
DC - Cutting Diameter 12.4mm
FHA - Flute Helix Angle 20deg
DCX - Maximum Cutting Diameter 12.49mm
ULDR - Usable Length Diameter Ratio 8.212096774194
PL - Point Length 1.9mm
SIG - Point Angle 142deg
DCN - Minimum Cutting Diameter 12mm
ORDCODE 870-1200-10LX063-8
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_R6250_2
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-01-19 15:04:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DK10_1
Hand R
MIID - Master Insert Identification 870-1240-10-PM
SSC - Insert Seat Size Code 10
TCDCON - Connection Diameter Tolerance h6
TCHA - Achievable Hole Tolerance H9
CICT - Cutting Item Count 1
NOF - Flute Count 2
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
