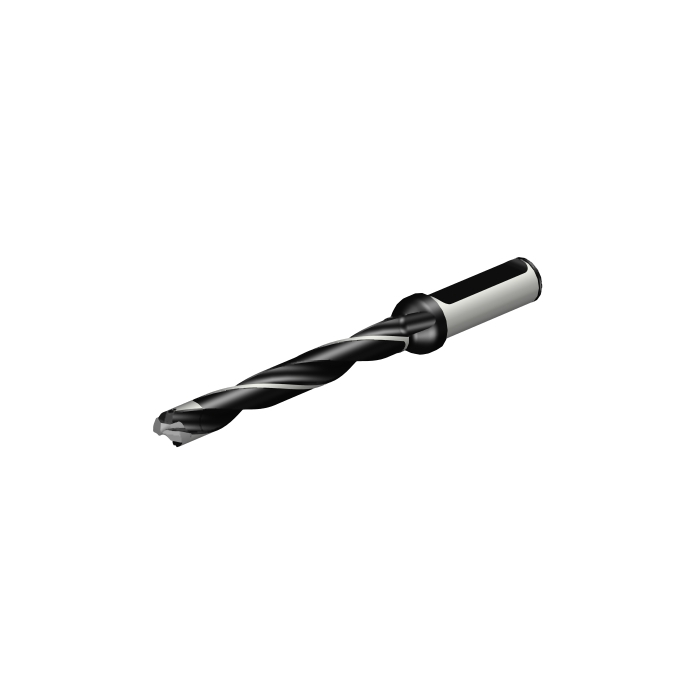

Sandvik Coromant 870-1300-12L16-8 CoroDrill® 870 exchangeable tip drill
Next
Sandvik Coromant 870-1250-11L16-8 CoroDrill® 870 exchangeable tip drill
Previous
R 6 142,15
inc. vat
In stock
SKU
6085534
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
CP - Coolant Pressure | 1500000Pa |
---|---|
DCON - Connection Diameter | 15.875mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 5.52mm |
BD - Body Diameter | 12.2mm |
LB - Body Length | 108mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 0.9Nm |
RPMX - Rotational Speed Maximum | 100001/min |
WT - Weight Of Item | 0.137kg |
OAL - Overall Length | 169mm |
OHX - Maximum Overhang | 119.02mm |
LSC - Clamping Length | 48mm |
Insert Thickness | 4.76mm |
H - Shank Height | 13.9mm |
LU - Usable Length | 105.92mm |
INSL - Insert Length | 7.5mm |
DC - Cutting Diameter | 12.9mm |
FHA - Flute Helix Angle | 20deg |
DCX - Maximum Cutting Diameter | 12.99mm |
ULDR - Usable Length Diameter Ratio | 8.210852713178 |
PL - Point Length | 1.98mm |
SIG - Point Angle | 142deg |
DCN - Minimum Cutting Diameter | 12.5mm |
ORDCODE | 870-1250-11LX063-8 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLISO_R6250_2 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-19 15:04:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DK11_1 |
Hand | R |
MIID - Master Insert Identification | 870-1290-11-PM |
SSC - Insert Seat Size Code | 11 |
TCDCON - Connection Diameter Tolerance | h6 |
TCHA - Achievable Hole Tolerance | H9 |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
