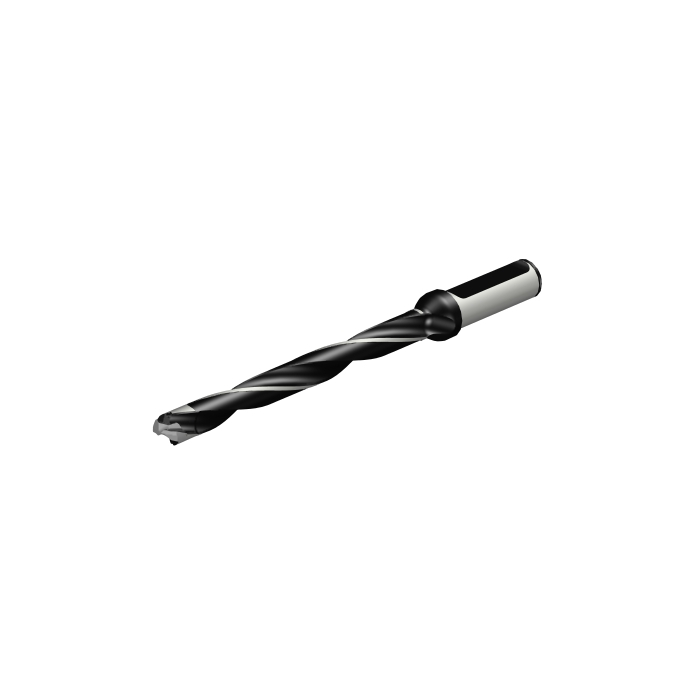

Sandvik Coromant 870-1300-12L16-10 CoroDrill® 870 exchangeable tip drill

R 8 438,70 inc. vat
In stock
SKU
6341275
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
More Information
CP - Coolant Pressure 3000000Pa
DCON - Connection Diameter 16mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 5.94mm
BD - Body Diameter 12.7mm
LB - Body Length 140mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.9Nm
RPMX - Rotational Speed Maximum 65001/min
WT - Weight Of Item 0.158kg
OAL - Overall Length 201mm
OHX - Maximum Overhang 150.94mm
LSC - Clamping Length 48mm
Insert Thickness 4.96mm
H - Shank Height 14.2mm
LU - Usable Length 136.97mm
INSL - Insert Length 8mm
DC - Cutting Diameter 13.4mm
FHA - Flute Helix Angle 20deg
DCX - Maximum Cutting Diameter 13.49mm
ULDR - Usable Length Diameter Ratio 10.221641791045
PL - Point Length 2.06mm
SIG - Point Angle 142deg
DCN - Minimum Cutting Diameter 13mm
ORDCODE 870-1300-12L16-10
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_G1600_2
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-01-19 15:05:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DK12_1
Hand R
MIID - Master Insert Identification 870-1340-12-PM
SSC - Insert Seat Size Code 12
TCDCON - Connection Diameter Tolerance h6
TCHA - Achievable Hole Tolerance H10
CICT - Cutting Item Count 1
NOF - Flute Count 2
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
