Sandvik Coromant 870-1700-17LX075-3 CoroDrill® 870 exchangeable tip drill Previous Sandvik Coromant 870-1700-17LX075-3 CoroDrill® 870 exchangeable tip drill

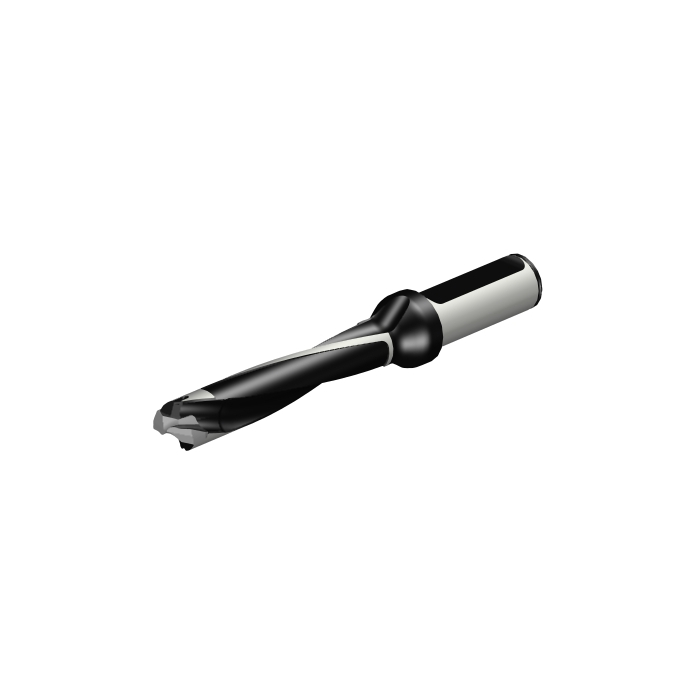

Sandvik Coromant 870-1700-17LX075-5 CoroDrill® 870 exchangeable tip drill

R 6 433,10 inc. vat
Out of stock
SKU
6035717
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 19.05mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 7.87mm
BD - Body Diameter 16.6mm
LB - Body Length 95mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 1.2Nm
RPMX - Rotational Speed Maximum 135001/min
WT - Weight Of Item 0.221kg
OAL - Overall Length 162mm
OHX - Maximum Overhang 109.27mm
LSC - Clamping Length 50mm
Insert Thickness 6.26mm
H - Shank Height 17.3mm
LU - Usable Length 92.69mm
INSL - Insert Length 10.6mm
DC - Cutting Diameter 17.9mm
FHA - Flute Helix Angle 20deg
DCX - Maximum Cutting Diameter 17.99mm
ULDR - Usable Length Diameter Ratio 5.178212290503
PL - Point Length 2.73mm
SIG - Point Angle 142deg
DCN - Minimum Cutting Diameter 17mm
ORDCODE 870-1700-17LX075-5
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_R7500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-01-19 14:49:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DK17_1
Hand R
MIID - Master Insert Identification 870-1790-17-PM
SSC - Insert Seat Size Code 17
TCDCON - Connection Diameter Tolerance h6
TCHA - Achievable Hole Tolerance H9
CICT - Cutting Item Count 1
NOF - Flute Count 2
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
