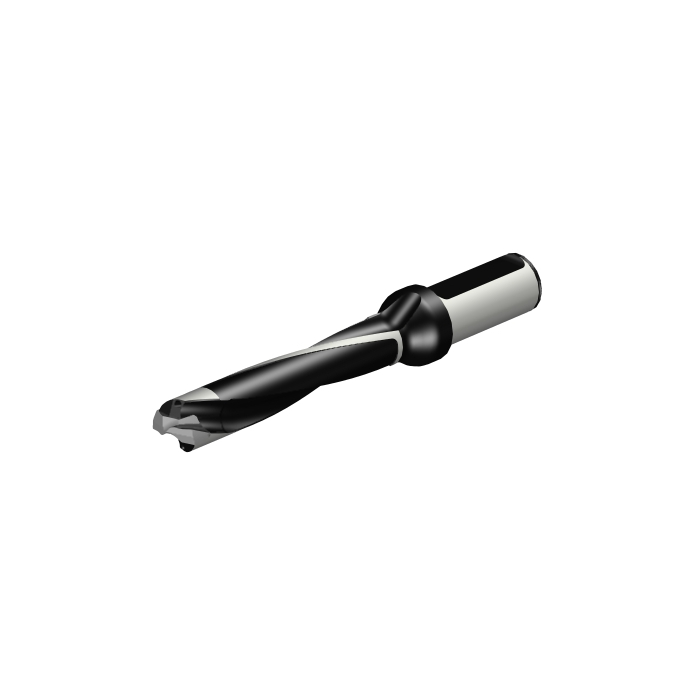

Sandvik Coromant 870-2200-22L25-5 CoroDrill® 870 exchangeable tip drill

Name: Sandvik Coromant 870-2200-22L25-5 CoroDrill® 870 exchangeable tip drill
SKU: 6239448
Price: 8539.90 ZAR
Availability: InStock

R 8 539,90 inc. vat

In stock

SKU

6239448

CoroDrill® 870 exchangeable tip drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 870 exchangeable tip drill

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	10.33mm
BD - Body Diameter	21.5mm
LB - Body Length	122mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	1.4Nm
RPMX - Rotational Speed Maximum	120001/min
WT - Weight Of Item	463g
OAL - Overall Length	199mm
OHX - Maximum Overhang	139.53mm
LSC - Clamping Length	56mm
Insert Thickness	7.76mm
H - Shank Height	23mm
LU - Usable Length	118.43mm
INSL - Insert Length	13.8mm
DC - Cutting Diameter	22.9mm
FHA - Flute Helix Angle	20deg
DCX - Maximum Cutting Diameter	22.99mm
ULDR - Usable Length Diameter Ratio	5.171615720524
PL - Point Length	3.47mm
SIG - Point Angle	142deg
DCN - Minimum Cutting Diameter	22mm
ORDCODE	870-2200-22L25-5
ADINTMS - Adaptive Interface Machine Direction	M_CYLISO_G2500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-01-19 14:50:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DK22_1
Hand	R
MIID - Master Insert Identification	870-2290-22-PM
SSC - Insert Seat Size Code	22
TCDCON - Connection Diameter Tolerance	h6
TCHA - Achievable Hole Tolerance	H9
CICT - Cutting Item Count	1
NOF - Flute Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
