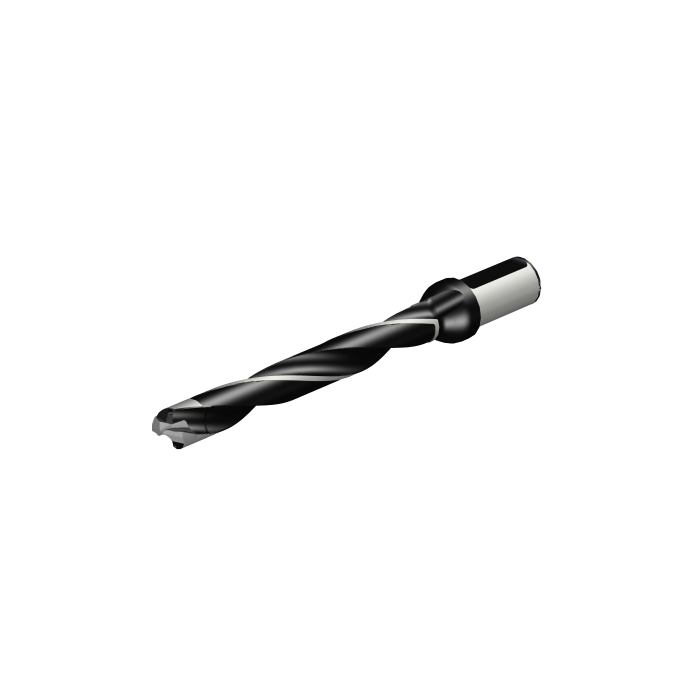

Sandvik Coromant 870-2600-26LX125-8 CoroDrill® 870 exchangeable tip drill

Name: Sandvik Coromant 870-2600-26LX125-8 CoroDrill® 870 exchangeable tip drill
SKU: 6425991
Price: 12284.30 ZAR
Availability: InStock

Be the first to review this product

R 12 284,30 inc. vat

In stock

SKU

6425991

CoroDrill® 870 exchangeable tip drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 870 exchangeable tip drill

More Information

More Information
CP - Coolant Pressure	1500000Pa
DCON - Connection Diameter	31.75mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	12.37mm
BD - Body Diameter	25.4mm
LB - Body Length	223mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	2Nm
RPMX - Rotational Speed Maximum	60001/min
WT - Weight Of Item	0.978kg
OAL - Overall Length	310mm
OHX - Maximum Overhang	245.97mm
LSC - Clamping Length	60mm
Insert Thickness	8.96mm
H - Shank Height	29.8mm
LU - Usable Length	220mm
INSL - Insert Length	16.4mm
DC - Cutting Diameter	26.65mm
FHA - Flute Helix Angle	20deg
DCX - Maximum Cutting Diameter	26.99mm
ULDR - Usable Length Diameter Ratio	8.255159474672
PL - Point Length	4.03mm
SIG - Point Angle	142deg
DCN - Minimum Cutting Diameter	26mm
ORDCODE	870-2600-26LX125-8
ADINTMS - Adaptive Interface Machine Direction	M_CYLISO_S1250_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-01-19 15:05:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DK26_1
Hand	R
MIID - Master Insert Identification	870-2665-26-PM
SSC - Insert Seat Size Code	26
TCDCON - Connection Diameter Tolerance	h6
TCHA - Achievable Hole Tolerance	H9
CICT - Cutting Item Count	1
NOF - Flute Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
