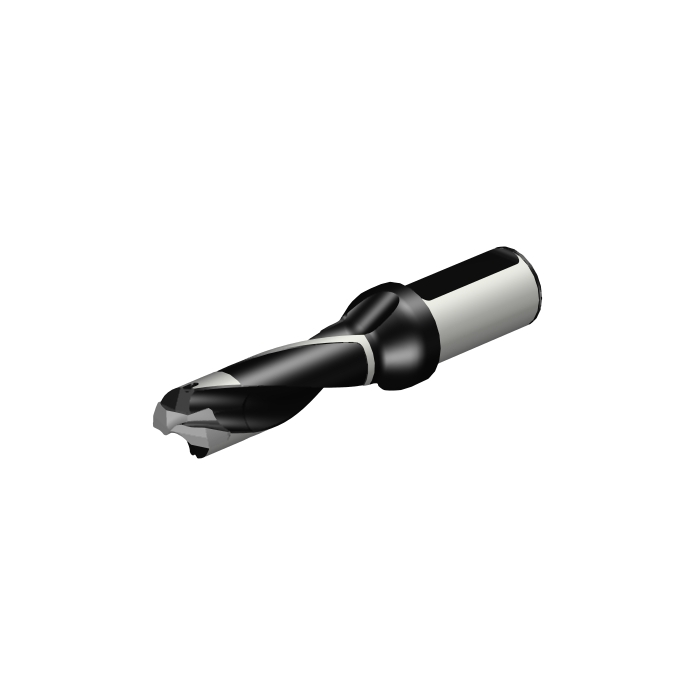

Sandvik Coromant 870-2800-28L32-3 CoroDrill® 870 exchangeable tip drill

Name: Sandvik Coromant 870-2800-28L32-3 CoroDrill® 870 exchangeable tip drill
SKU: 6425998
Price: 10315.50 ZAR
Availability: InStock

R 10 315,50 inc. vat

In stock

SKU

6425998

CoroDrill® 870 exchangeable tip drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 870 exchangeable tip drill

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	32mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	13.28mm
BD - Body Diameter	27.4mm
LB - Body Length	95mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	160001/min
WT - Weight Of Item	746g
OAL - Overall Length	181mm
OHX - Maximum Overhang	116.68mm
LSC - Clamping Length	60mm
Insert Thickness	9.56mm
H - Shank Height	30mm
LU - Usable Length	91.36mm
INSL - Insert Length	17.6mm
DC - Cutting Diameter	28.9mm
FHA - Flute Helix Angle	20deg
DCX - Maximum Cutting Diameter	28.99mm
ULDR - Usable Length Diameter Ratio	3.16124567474
PL - Point Length	4.32mm
SIG - Point Angle	142deg
DCN - Minimum Cutting Diameter	28mm
ORDCODE	870-2800-28L32-3
ADINTMS - Adaptive Interface Machine Direction	M_CYLISO_G3200_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-01-19 14:50:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DK28_1
Hand	R
MIID - Master Insert Identification	870-2858-28-PM
SSC - Insert Seat Size Code	28
TCDCON - Connection Diameter Tolerance	h6
TCHA - Achievable Hole Tolerance	H9
CICT - Cutting Item Count	1
NOF - Flute Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
